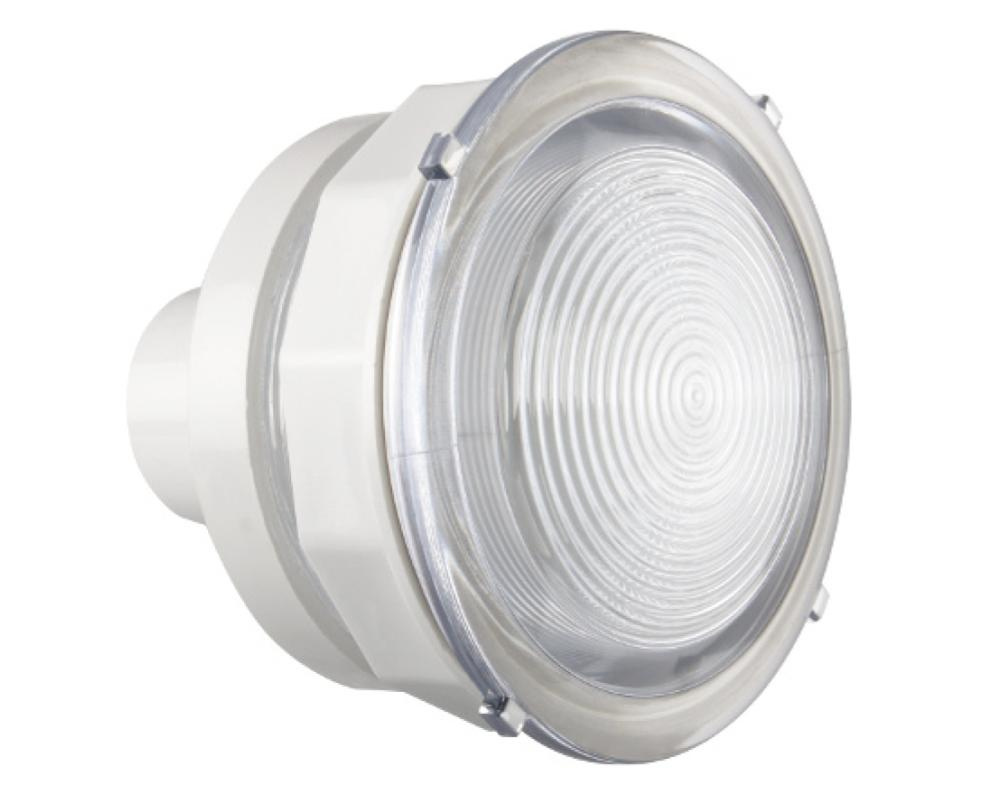

Sundance Spas complete light assembly

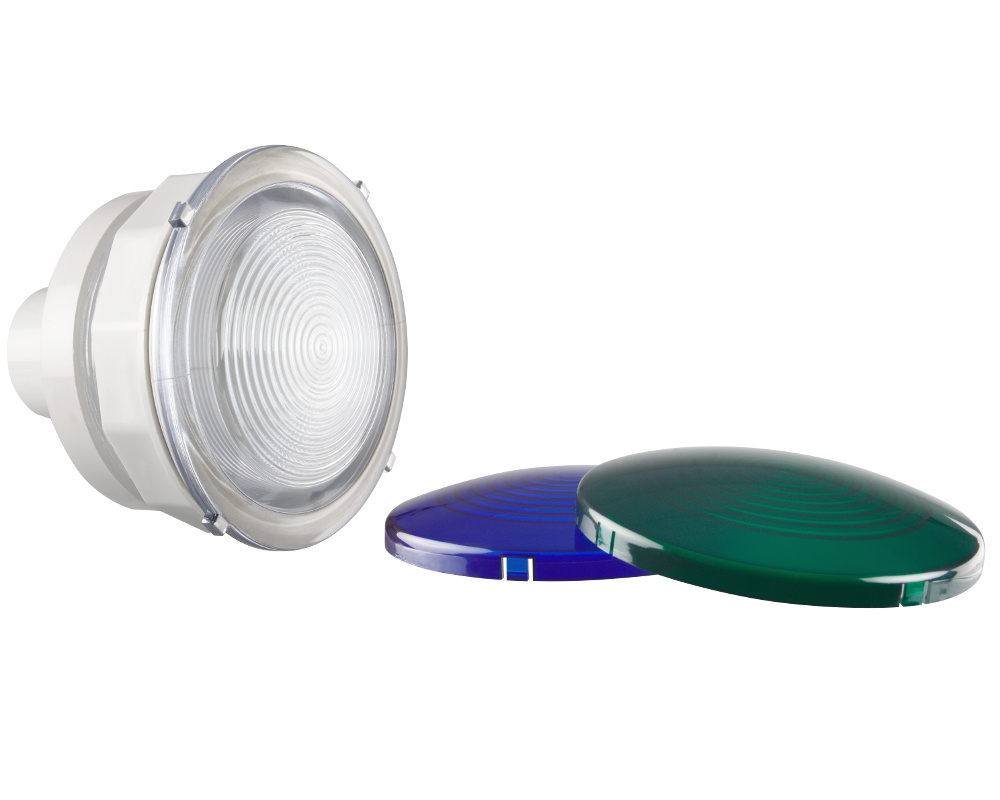

This complete light assembly has a face diameter of 108 mm, and comes with a large nut to secure the projector in place, an o-ring that fits inside the pool, and a reflector. Two coloured filters (blue and green) are also provided.

It is often found on Jacuzzi and Sundance Spas hot tubs.

Compatible Jacuzzi models:

• 2002-2004 : J-310, J-320, J-330, J-340
• 2005-2006 : J-210, J-220, J-230
• 2003-2004 : Del Sol Series

Compatible Sundance Spas models:

• All 2006-2007 680 Series spas
• All 2006-2007 780 Series spas
• All 2005 Sundance 850/850E Series Spas
• All 2005 780 Series Spas
• All models manufactured between 1998 and 2004, plus some that are even older

Dimensions
Face diameter : 108 mm
Diameter of the hole to drill in the spa shell : 84 mm
Internal diameter (max diameter of the bulb) : 72 mm
Total height: 61 m
Diameter of the coloured filter: 116 mm

Compatible bulbs
Standard 12W, STARburst 10, STARburst 28, SloanLED UltraBRITE-mini, Balboa MoodEFX, Rising Dragon 28 LEDs

Part numbers
Sundance Spas : 6540-998
