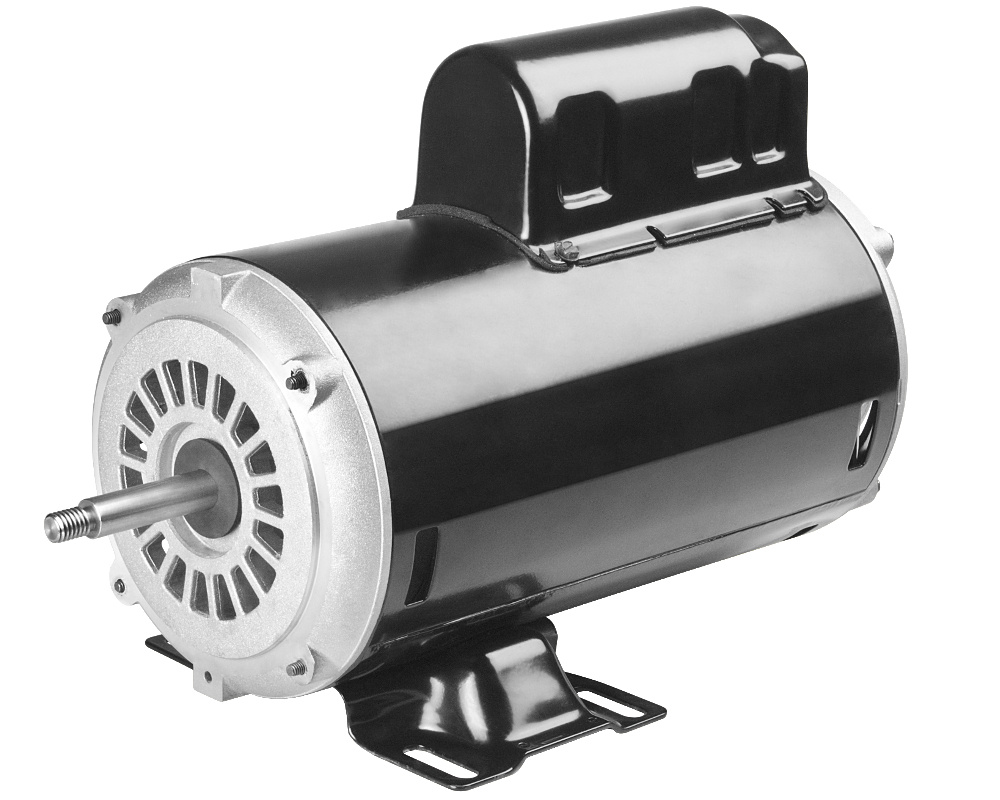

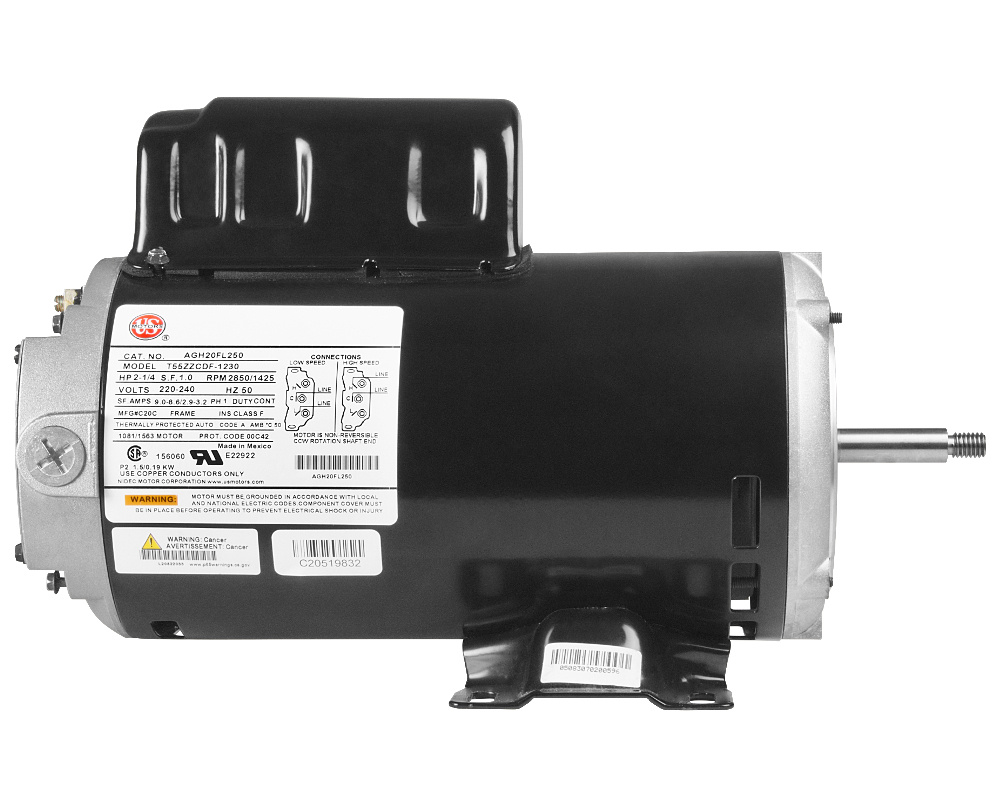

US Motor AGH20FL250 2-speed motor
This two-speed 48-Frame motor manufactured by US Motor (formerly A.O. Smith Century Lasar) is easily recognised by its long, smooth cylindrical shape. It is used on several different models of hot tub pump.
This moteur is longer, lower, and slightly more powerful than the other two-speed motors that we offer. Our technicians often use it in situations where there is not enough space for an EMG motor, for example.
Power rating
Power supply: 230V, 50 Hz
High speed power: 2,05 kW (2,25 HP), 8.9 A
Low speed: 0,67 kW, 2,9 A
Dimensions
Length of the motor body : 300 mm
Length of the motor including spindle : 350 mm
Width : 150 mm
Height : 210 mm
Shaft diameter : 12 mm
Stand footprint: 164 x 98 mm

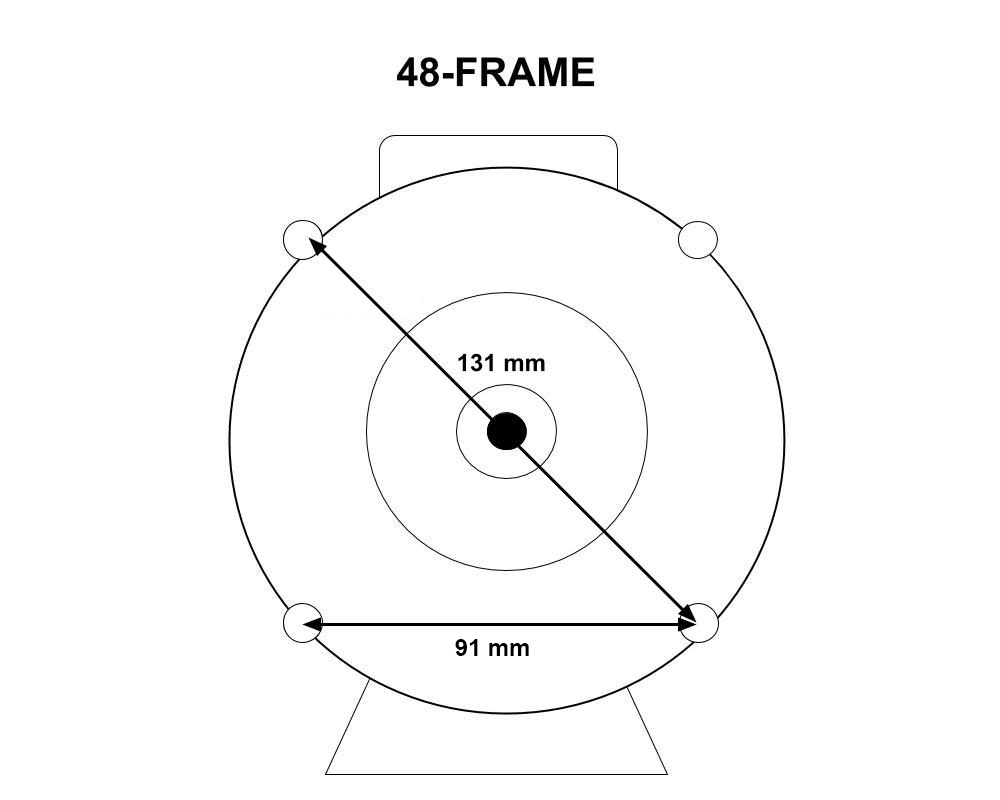

Distance between bolts to attach the wet end : 91 mm horizontal, 131 mm diagonal, for a Waterway or CMP 48-Frame wet end
Warranty
2-year Tubs Parts warranty
Part numbers
US Motor : AGH20FL250
