US Seal PS-1000 - wet end seal

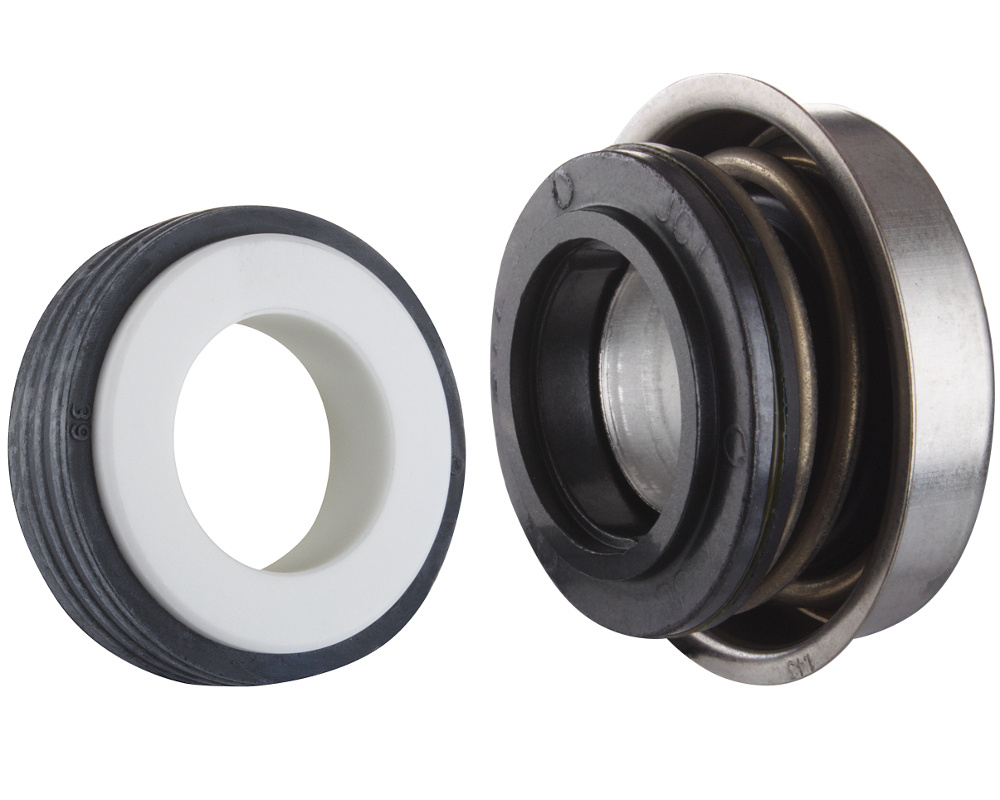

This seal ensures that the water doesn't leak out of the pump wet end, along the motor spindle. It comes in two parts: one mounts on the wet end (in the centre of the photo) and the other slots in behind the impeller (right of the photo).
For a better seal at the steel collar, we recommend the addition of a silicone gasket or an O-ring.
Some wet end pumps are supplied with wet end seals that have an additional o-ring seal. In the case of a wet end seal replacement (delivered without o-ring), we advise you to add silicone to the bottom of the wet end pump to to ensure it is sealed correctly.

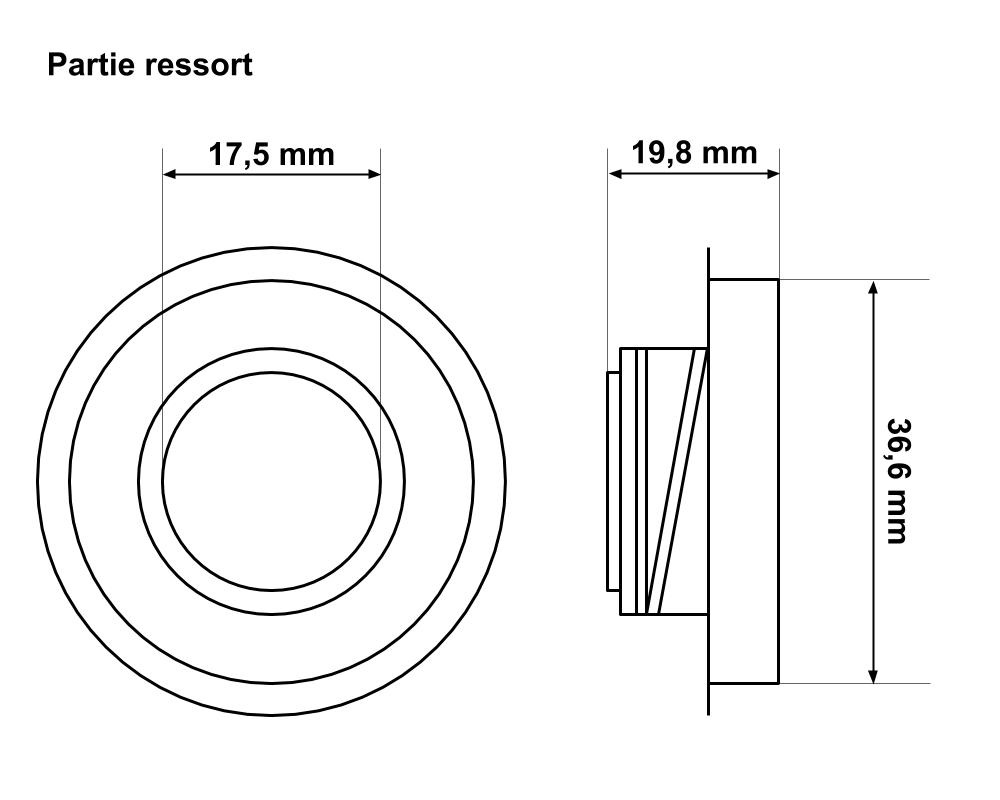

Dimensions (mm)
| Ceramic ring | Spring | |
| Ø Exterior | 32.2 | 36.6 |
| Ø Interior | 17.1 | 17.5 |
| Thickness | 10.2 | 19.8 |
Compatibility
- Waterway Executive single-speed and two-speed
- Waterway Hi-Flo single-speed and two-speed
- Waterway Iron Might (Pre 2015)
- Spa-Flo
- ITT Magnaflow 440
- HydroAir HA440NG single-speed and two-speed
- HydroAir HA350
- Acura Aquaheat, Aquaheat Plus, Magnaflow, Magnaflow 56, Maverick, Supercharger, Supercharger II
- and many others!
Part numbers
U.S. Seal: PS-1000
Waterway: 319-3100B
Dimension One: 01512-101
Balboa HydroAir: 6001575
Pentair: 071734SP
Gecko: 9250050, 9250040 et 92509040
Sta-Rite: U109-136SS
Acura: 1090-A and 1092-AV
Dream Maker Spas : 411293
