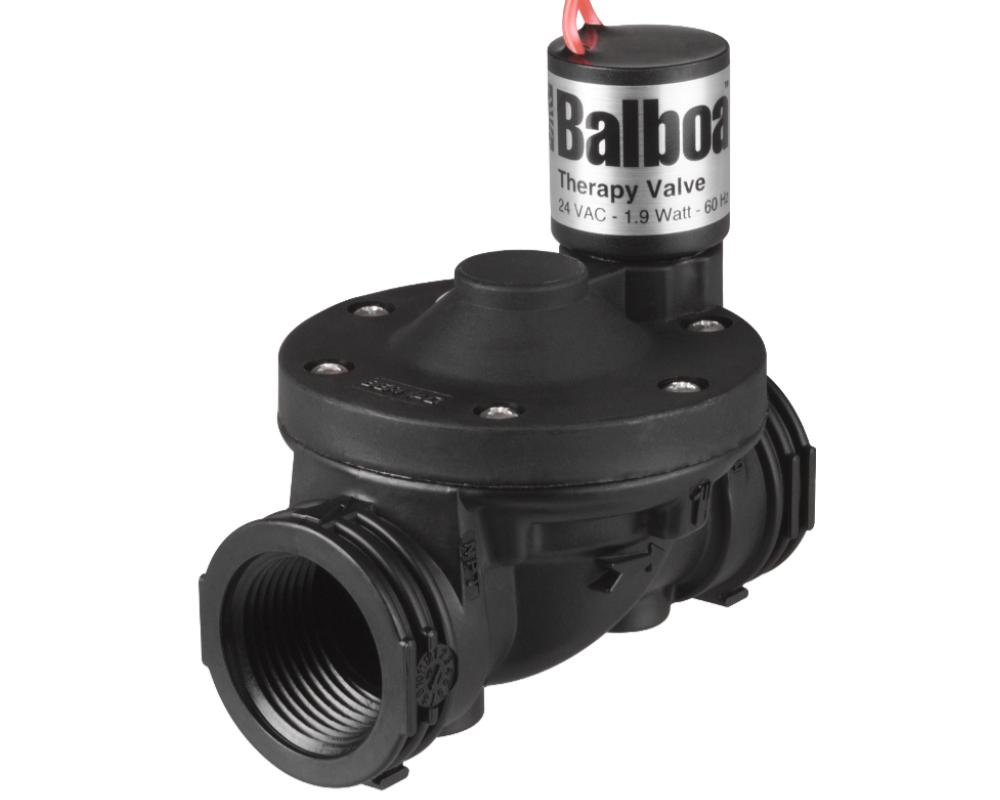

Valve for Balboa Therapy Sequencer
This electronic valve is part of Balboa's sequential massage system. The valves (4 minimum per system) are combined with the sequencer and dedicated keypad to create a massage circuit, and are operated by a pump of 2 HP or more.
The electronic opening and closing of the valves, connected to a series of jets via manifolds, allows the creation of programmed massage sequences.

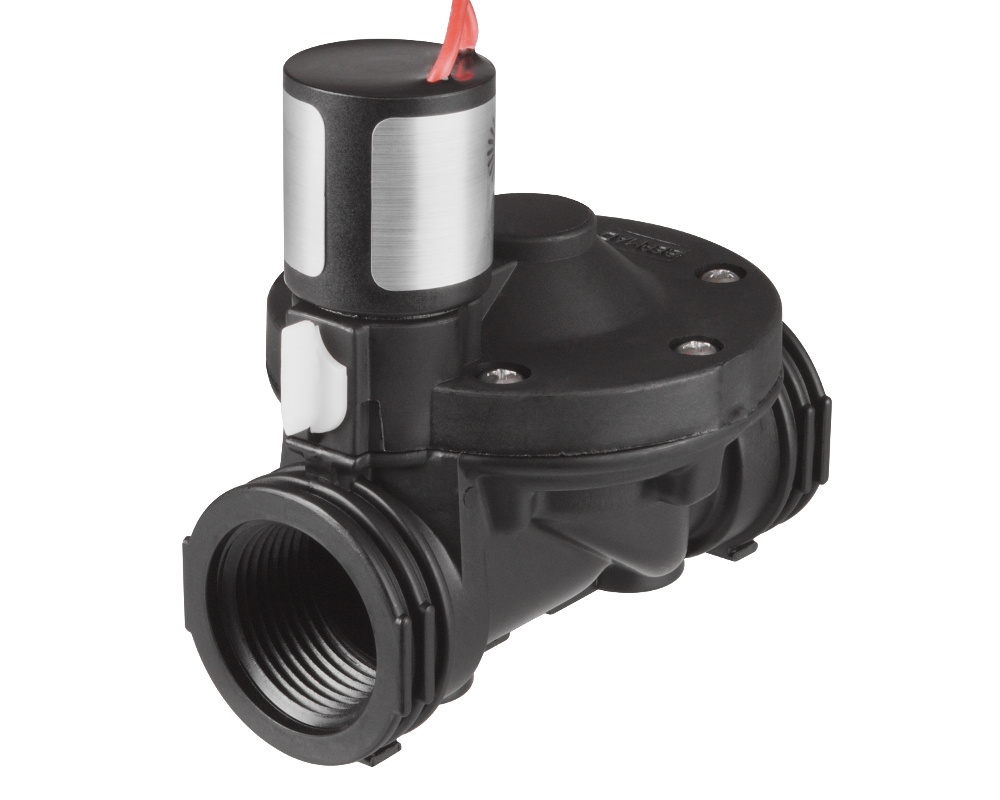

The valve is normally closed and opens when powered. It has a manual opening (small white handle, see picture 2).
Many brands have added the Balboa sequential massage system to their spas, including Wellis, Hydro Spas, and Blue Lagoon, among others.
Dimensions
Width: 110 mm
Height: 102 mm
Max. diameter : 80 mm

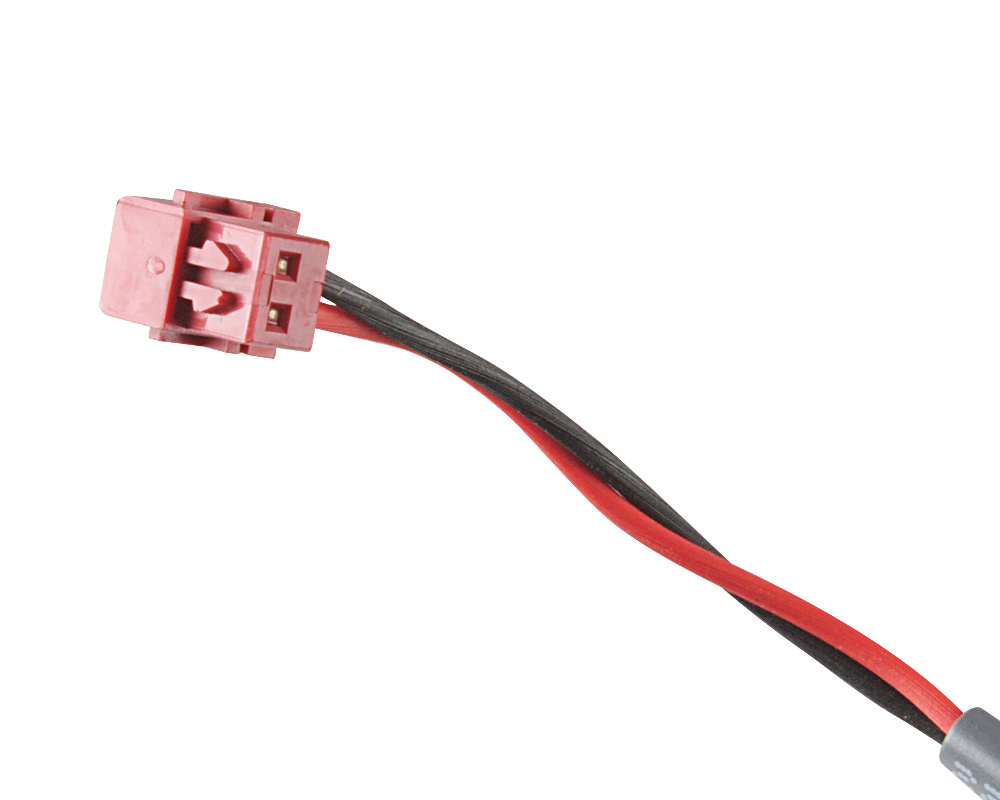

Cable: 2.5 m with 2-pin connector
Power supply voltage: 24V AC
Connection
Threaded ends 30 mm diameter, to be connected to 1-inch pipes with two 1" F to 1" MPT adapters.
Don't forget the Teflon to ensure waterproofness!
Warranty
2-year Tubs Parts warranty
Part numbers
Balboa : 11054
