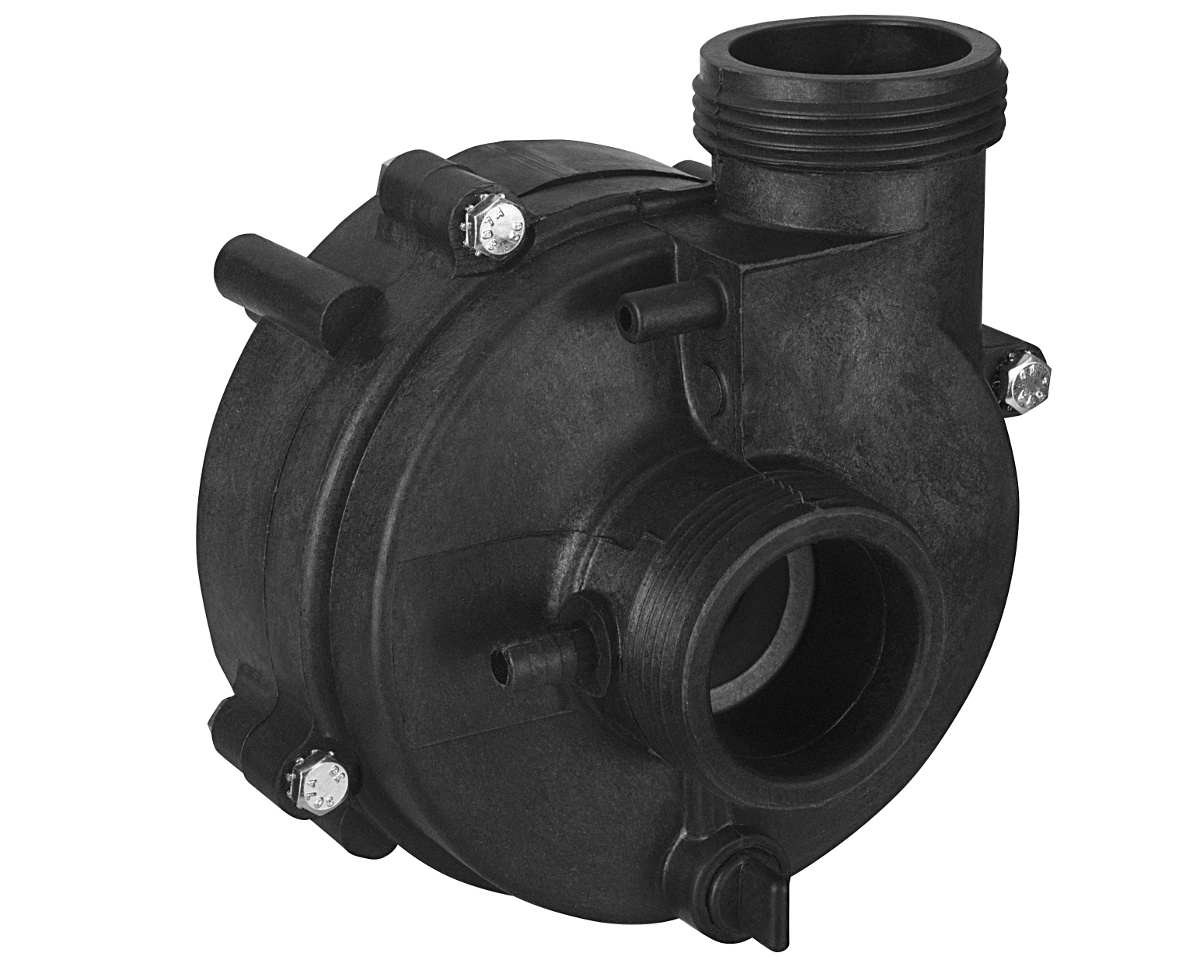

Vico Ultrajet and Ultima wet end

This 2HP, 48-frame wet end fits Balboa Vico Ultrajet and Ultima pumps, as well as the Balboa 1030025 and 1031025 circulation pumps.

It is not compatible with the 0.25 HP (103130) circulation pump, which has a smaller wet end.

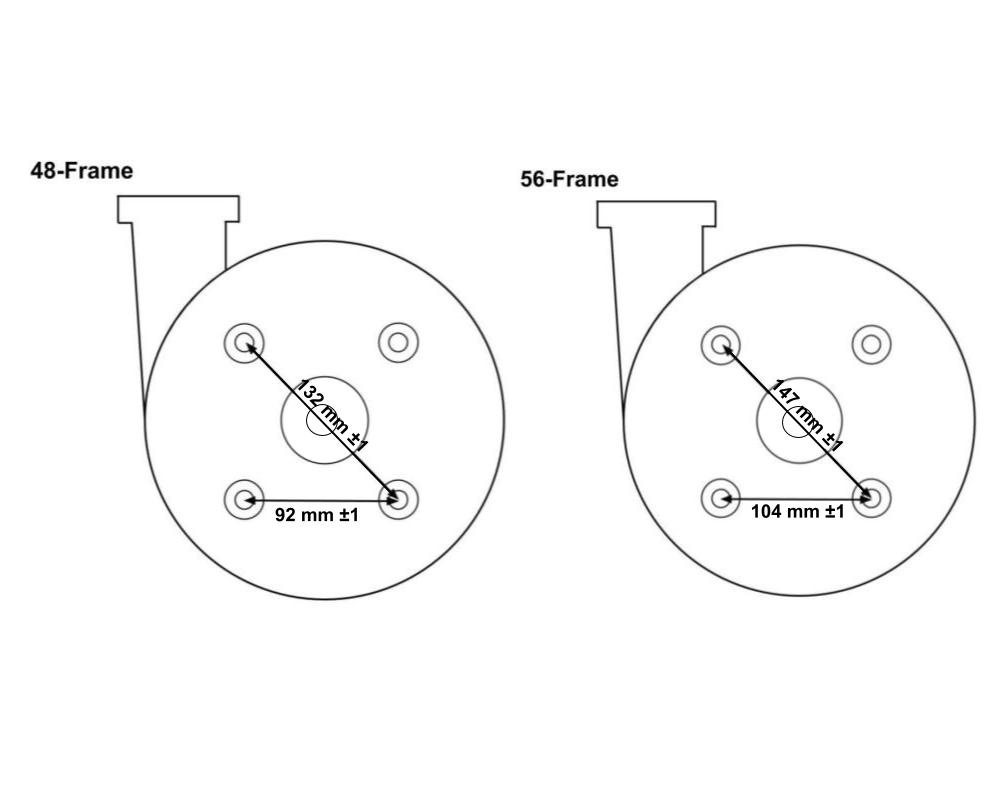

It has two sets of threaded attachment points to fix the wet end to the motor: 48-Frame and 56-Frame.

Pipe connections
Thread diameter: 62 mm (1.5" MBT thread)
We offer pump unions for 1,5" and 50 mm pipe

Dimensions
Depth: 130 mm
Width: 145 mm
Height: 185mm

Part numbers
Balboa : PKUL20HSDCS
