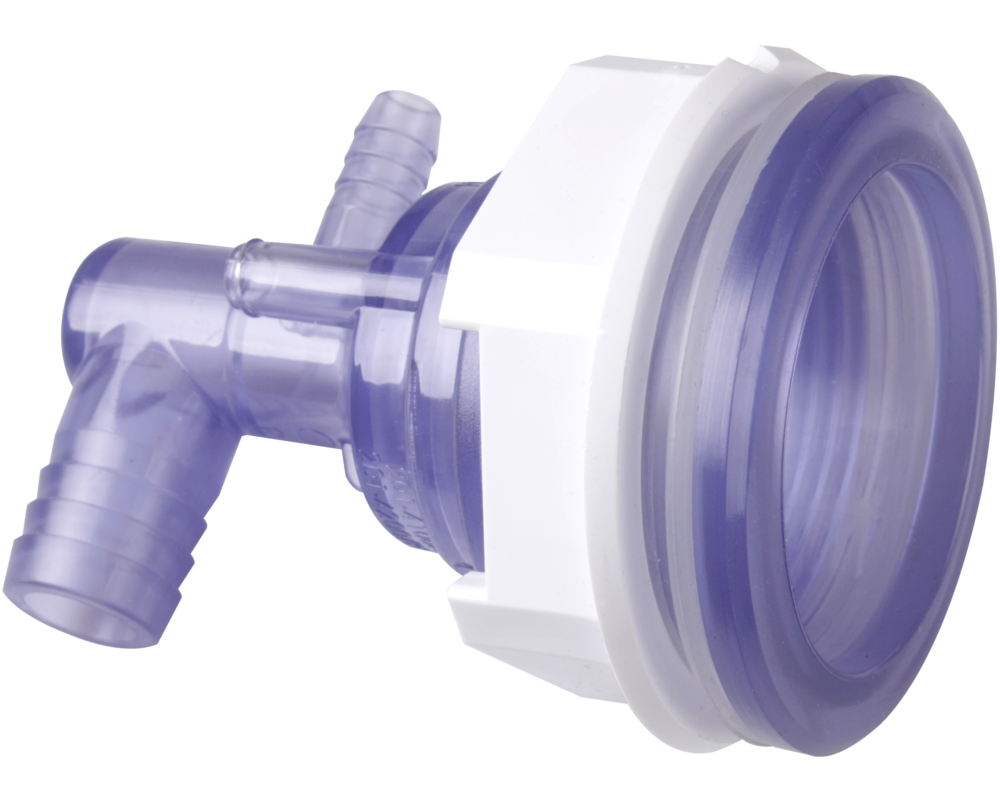

Waterway Glo Poly Storm thread-in socket

All Waterway's Poly Storm thread-in jets fit into this socket. It is not suitable for snap-in jets, for which the old model must be used.

The jet socket is the fitting attached to the spa (inside and outside of the spa wall), which holds the jet in place. The flow of water through the socket sucks in air by the Venturi effect, thereby adding bubbles to your spa jet.

The fixing nut and the gasket are included.

This socket is transparent so that LEDs can be inserted on the sides.

In order to manage the water and the air flow through the jets, the air nozzle is connected to a normal manifold et then on to a valve. If you do not want to have bubbles through the water jets, just close the air nozzle with a 3/8" plug.

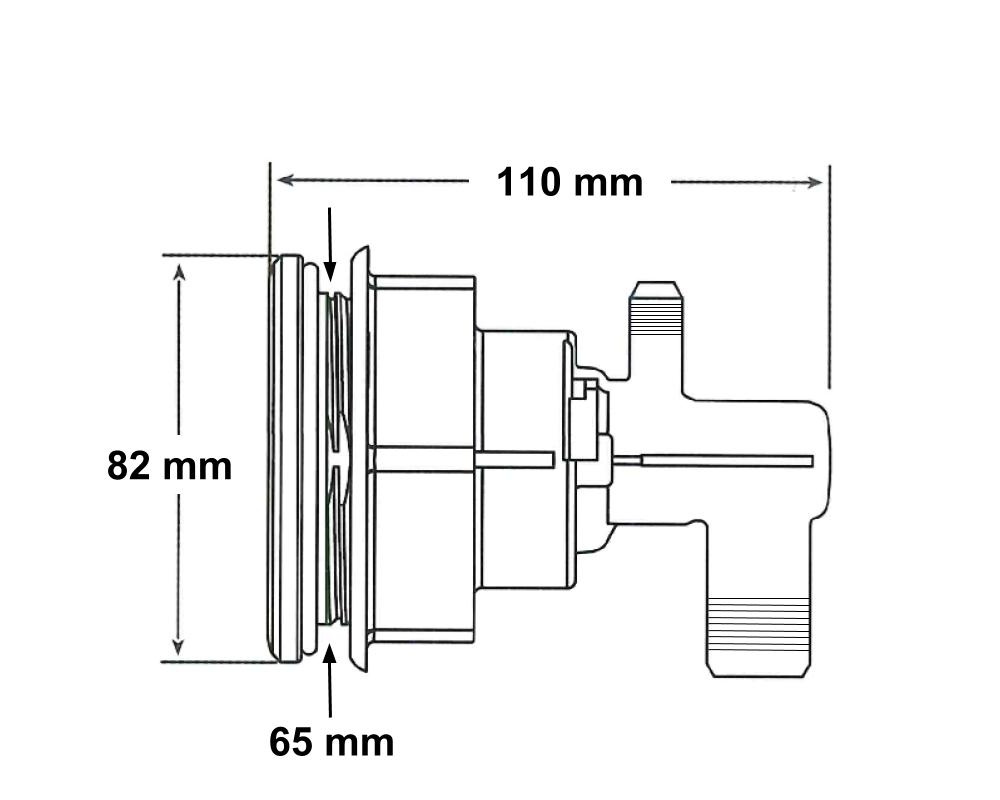

Dimensions:
Intside diameter: 57 mm
Outside diameter: 82 mm
Outside diameter of the thread: 65 mm
Length: 110 mm

Plumbing connections
Water: 3/4-inch clear pipe
Air: 3/8-inch clear pipe

Part numbers
Complete jet socket: 228-0408
Nut only: 718-4100
Sunrise Spas : R3035402
