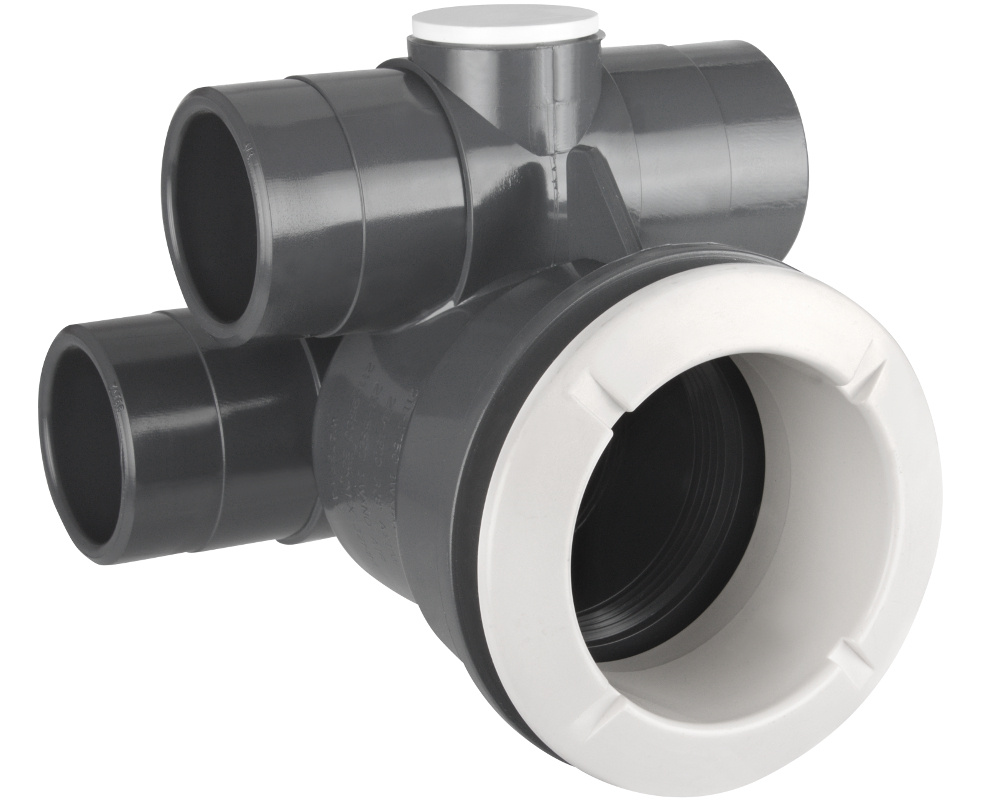

Waterway Poly Jet Tee socket, 32 mm connection

This Waterway Poly Jet socket has 32 mm sockets for both water and air (venturi suction). We offer another version of this socket for 1-inch pipe, which has a 33 mm outside diameter, so only 1 mm difference !

Sockets configured as a tee, like this one, are designed to allow you to daisy chain jets on a relatively large pipe. This is a simple plumbing configuration for spas with a small number of jets, and makes the entire system easier to disinfect, since there is less pipe and higher flow rates. For this reason, this type of jet is often seen on commercial spas.

The socket is delivered with a short wall fitting and a small top air plug.

To ensure maximum sealing on both sides of your spa shell, we recommend using a gasket (not included) and silicone between the socket and the shell.

Dimensions
Drill diameter: 66 mm

Part numbers
Waterway: 210-5830, 211-9500
Astral: 62650
You may also notice the part number 211-5830 on the part that goes under the shell. This part is not sold separately from the male-threaded wall fitting that holds it to the shell.
Poly Jet Body Plug: 715-0010
