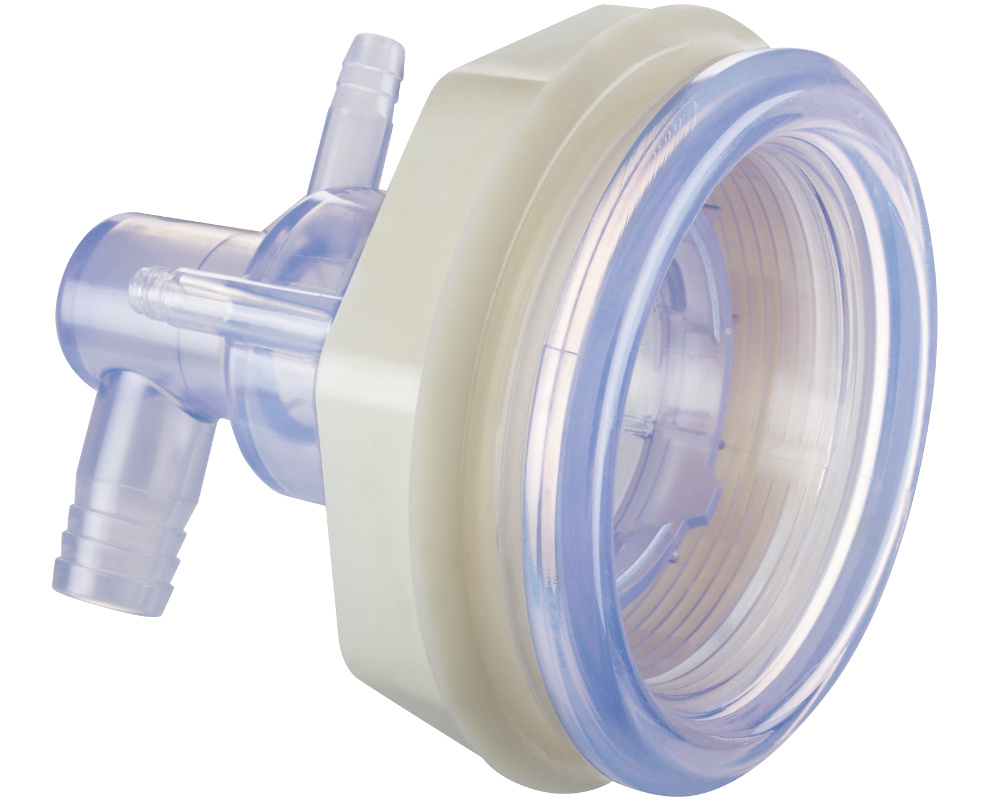

Waterway Power Storm thread-in socket

This Waterway socket works with all Power Storm thread-in jets. The socket is attached to the spa shell and the nozzle is screwed in. The fixing nut and the gasket are supplied with the sleeve.

The water flow through the socket draws in air through the Venturi effect, which adds bubbles to the water jet and increases the power of the massage. The air inlet of each nozzle is normally connected to a manifold, and then to a valve, so that the air/water mixture in the jets can be modified.

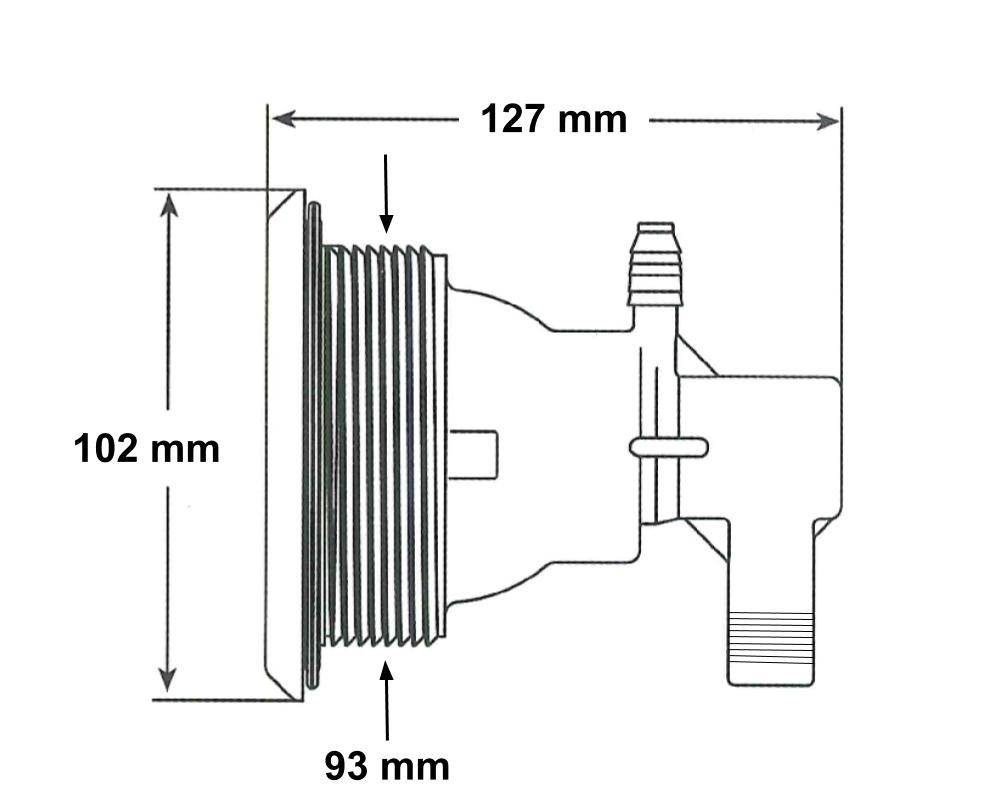

Dimensions
Outer diameter: 102 mm
Length: 127 mm
Drill diameter (outside of the thread diameter): 93 mm

Hoses to be connected
Water: 3/4-inch soft
Air: 3/8-inch soft

Part numbers
Waterway: 228-0040
Sunrise Spas : R3035403
