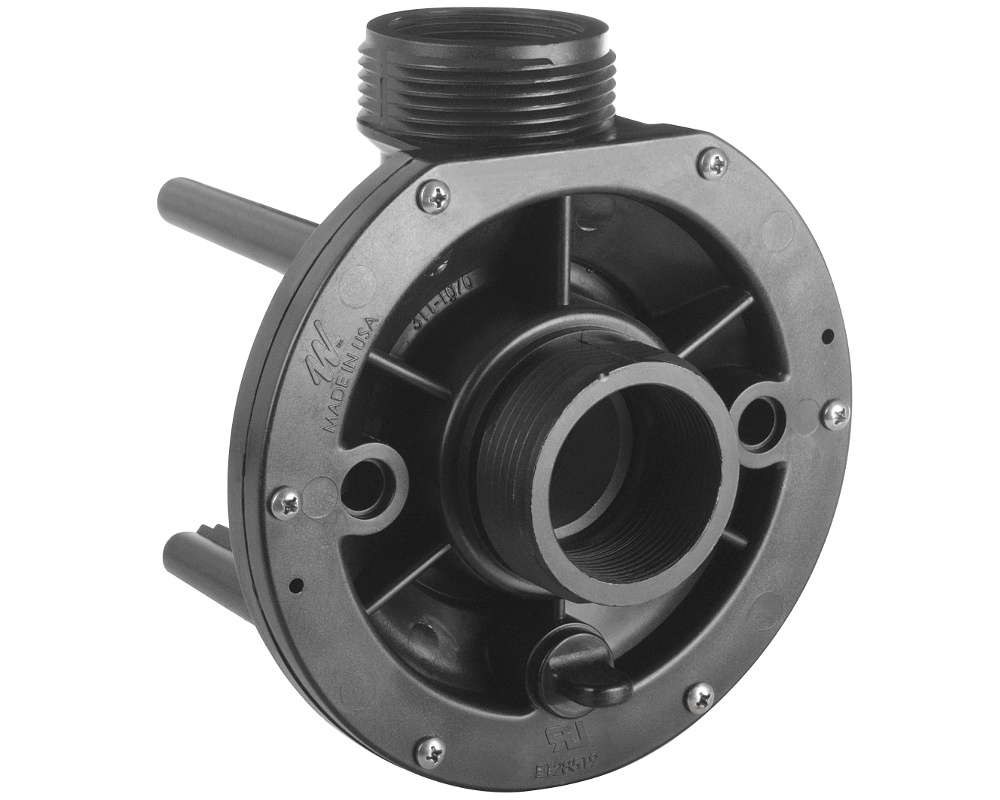

Waterway E-series 2HP wet end

This wet end fits the Waterway Type 80/2 and 2-speed E-Series pumps.

Both the suction and the return have a 1.5" MBT thread, with an outside diameter of 62 mm.

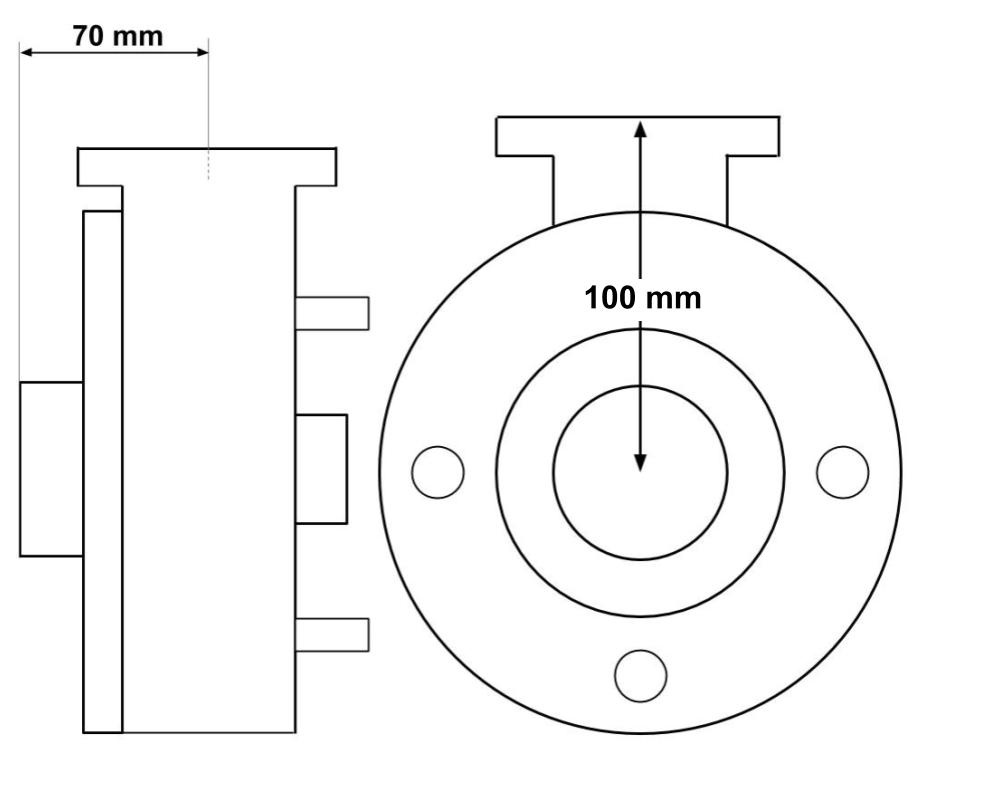

Dimensions
Width: 165 mm
Height: 180 mm
Depth: 145 mm

Part numbers
2HP wet end: 310-1141, 310-8240
2HP impeller : 310-8040

1,5 HP wet end: 310-8230 ou 310-1140
1,5 HP impeller : 313-8130 ou 310-8030
