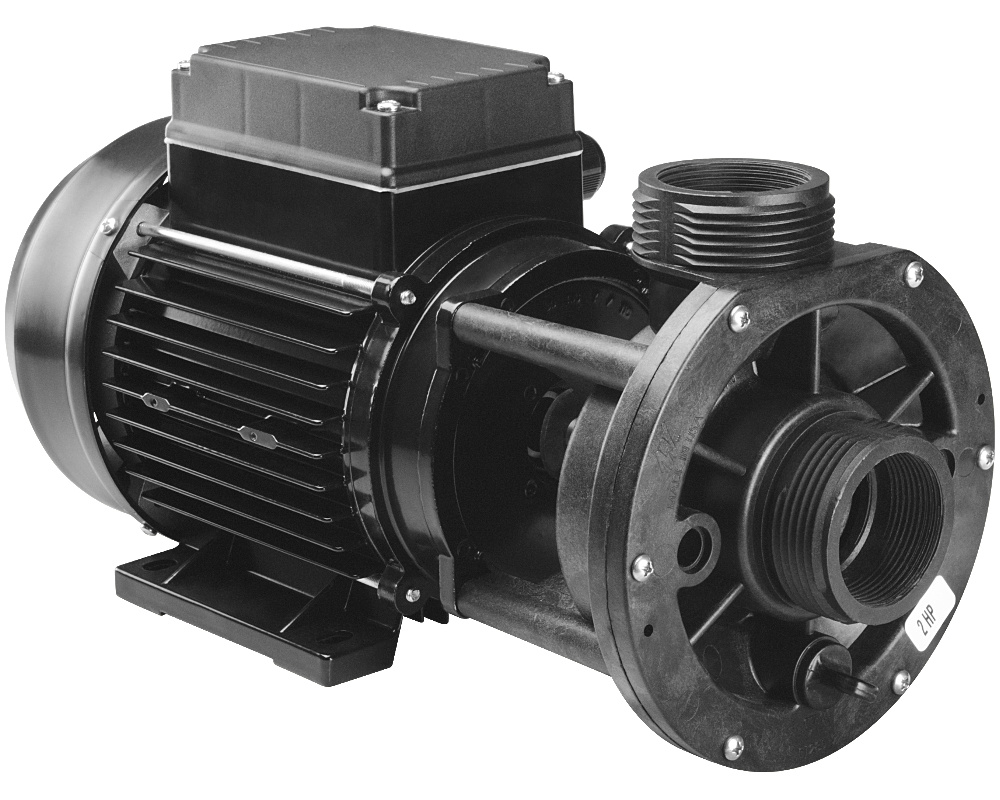

Waterway E-Series single-speed pump Type 80/2

The Waterway E-series pump is used by several major spa brands. This single-speed pump is used for massage jets. Waterway uses an EMG 80/2 Type motor, made in Italy, and offers good resistance to water infiltration. This pump is supplied with a 2HP turbine.

We also sell a version of this pump with a Type 71/2 motor as well as the two-speed model.

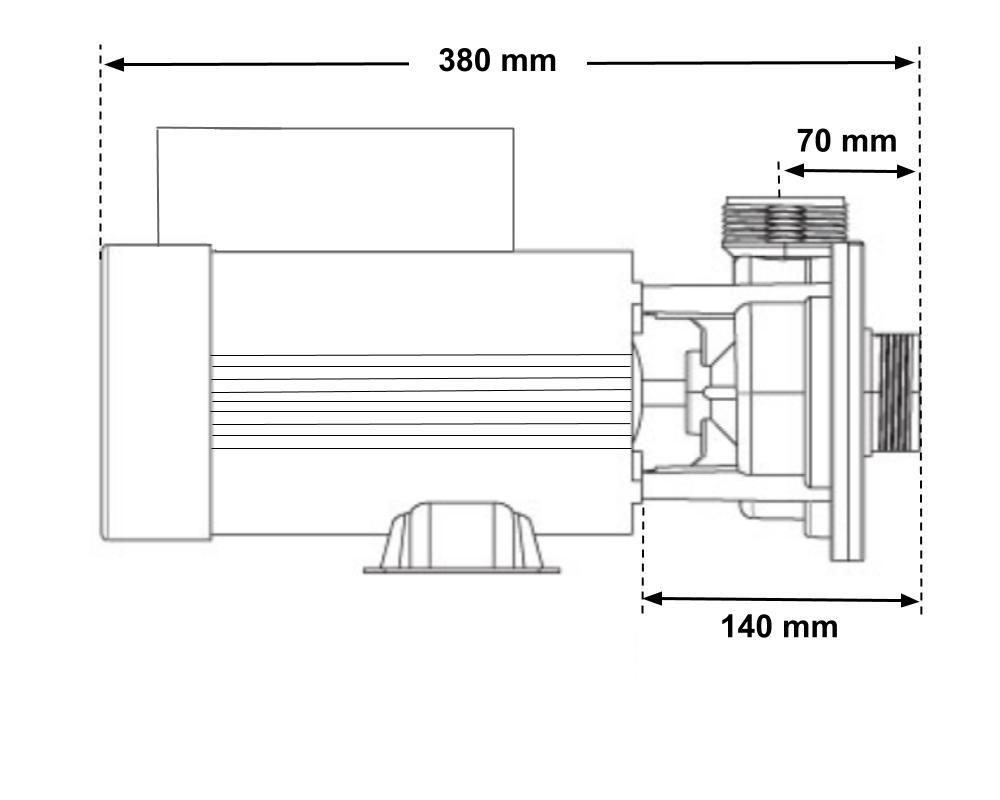

Dimensions
Length: 380 mm
Width: 170 mm
Height: 195 mm

Connections
Male threaded fittings with an external diameter of 62 mm, for a connection with a 62 mm nut and either a 1.5-inch pipe connection.

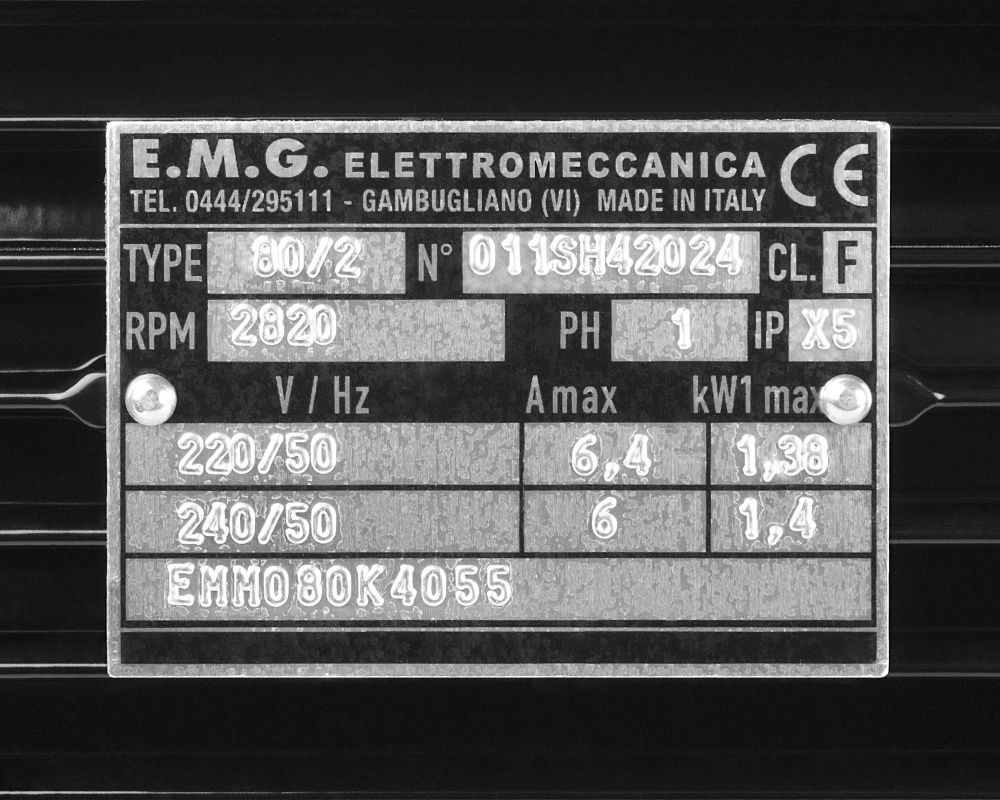

Technical specifications
Electrical supply: 220-240 V, 50 Hz
Power: 1.38 kW
Current: 6,4 A

Cables and plugs
The Waterway E-Series pump is delivered without plug and cable. If you are replacing an existing pump, you may be able to re-use your existing power cord. You can also choose to have it pre-cabled by our team with an AMP plug or a mini J&J plug.

An in.link plug is also available, but we recommend that you keep your existing cable if it's in good condition. Your pump may indeed be defective for many reasons, but the power cable is rarely to blame.

Capacitor
In case you need to replace it, it is a 25µF

Other spare parts
We offer some spare parts for the Waterway E-Series pump: the drain plug and the wet end.

Guarantee
2-year Tubs Parts warranty

Part numbers
Waterway: 3410620-CE

Plug types

AMP plug

J&J plug

in.link plug
