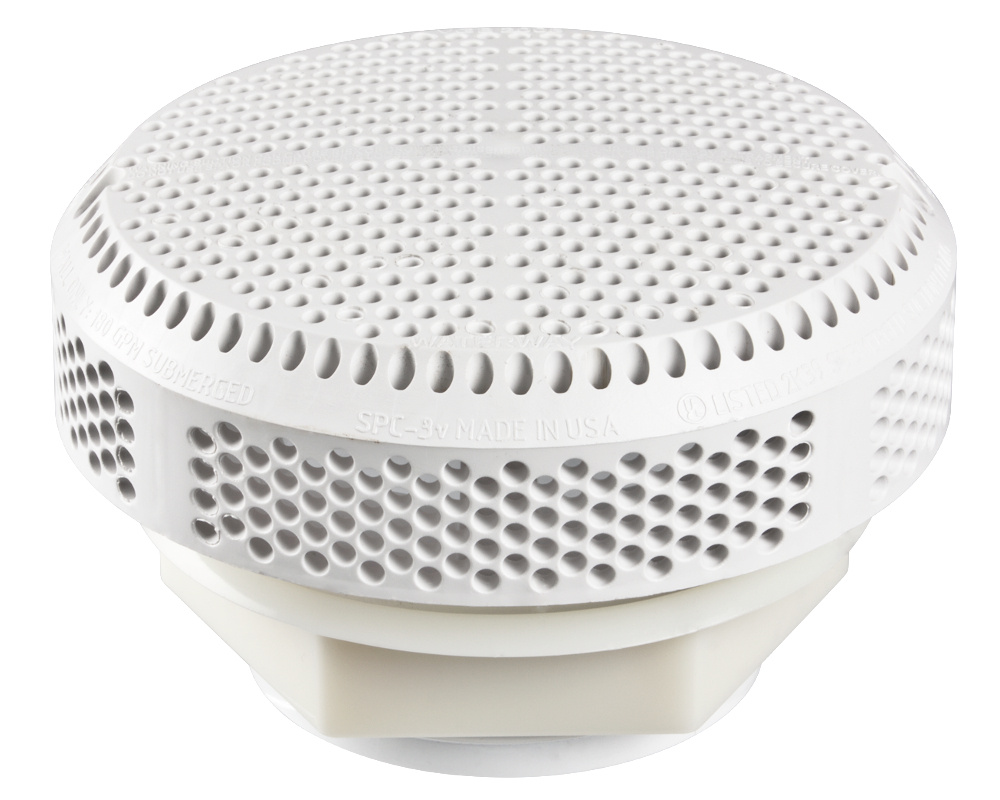

Waterway Super Hi-Flo 2.5" suction

This Waterway Super Hi-Flo suction fitting is rated for a flow of 180 GPM (41 m³/hour). Like all modern suction fittings, it is equipped with with an anti-vortex grille. It connects to a 2.5-inch pipe.

It is designed to be mounted on the wall of the spa, not the floor.

The suction fitting is supplied with a fixing nut and a gasket, to be installed between the shell and the suction fitting.

An L-shaped gasket is also available, where the gasket has an inner lip that extends partially through the hole in the shell, although this gasket is not supplied with the suction.

Dimensions
Diameter of face: 133 mm
Drill diameter : 83 mm
Inside diameter of fitting: 73 mm, for 2.5-inch pipe

Maximum flow rate
41 m³/hour

Waterway part numbers
White: 640-3580 V
Gasket : 711-3260
Wall fitting : 215-3610
