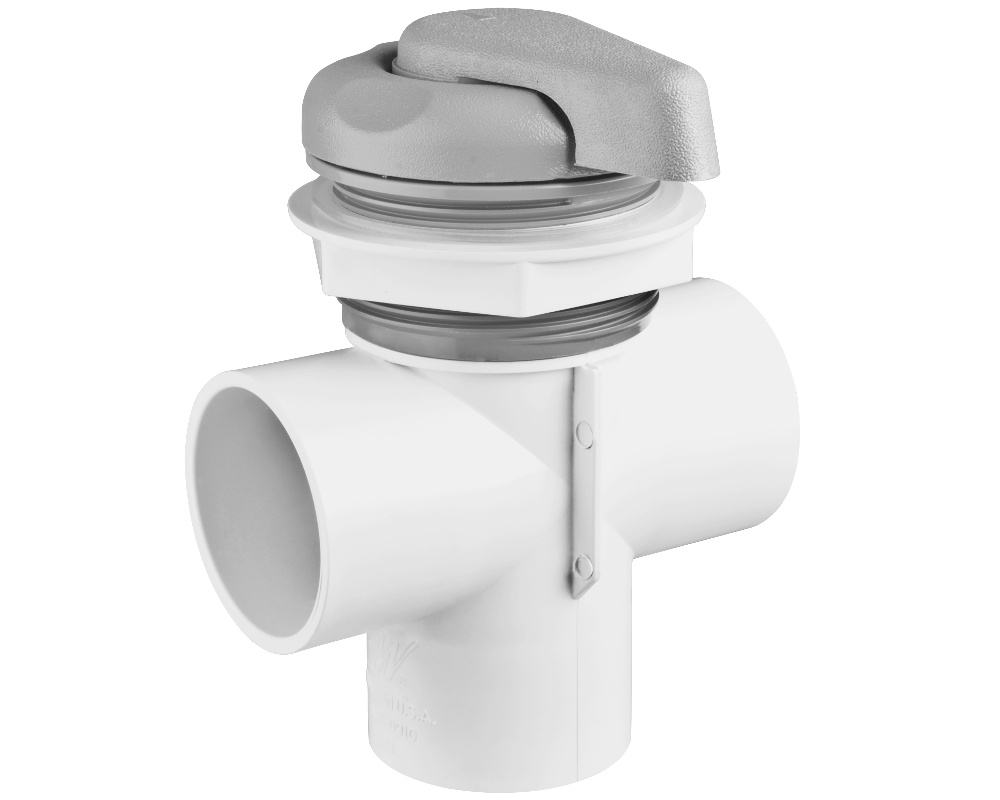

Waterway Top Access 2" diverter valve

Diverter valves are used to regulate the water flow between different sets of jets. They are found on the rim of the spa.

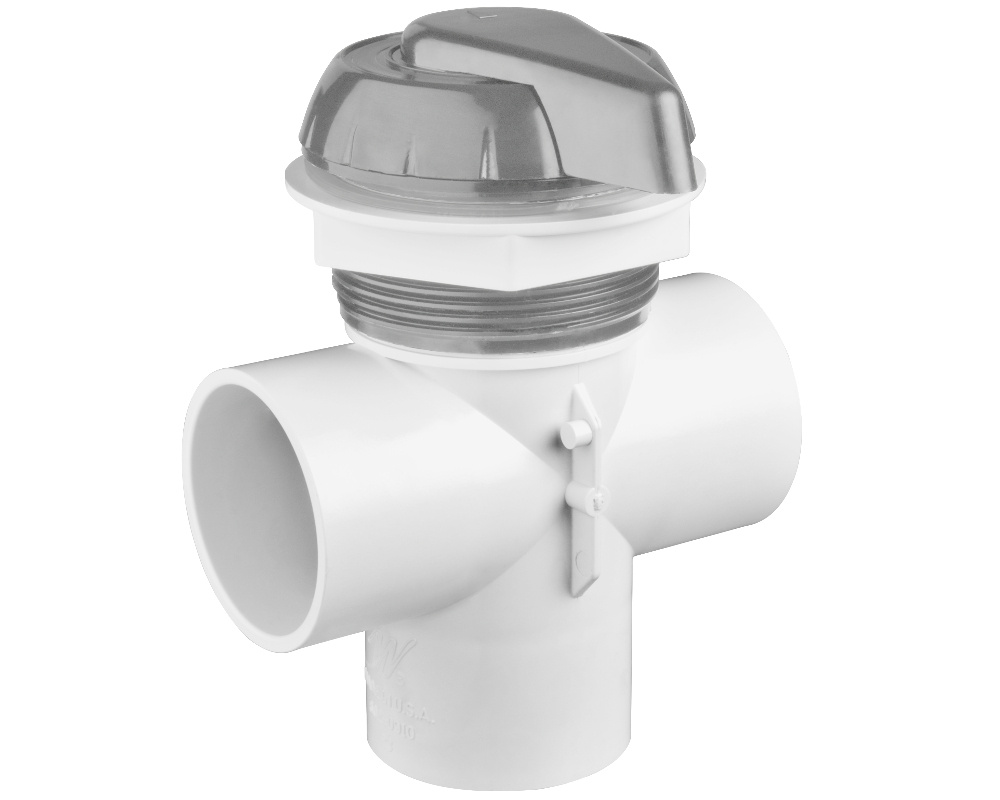

This valve is available in 5-Scallop Style (textured grey) and Notched Style (smooth black and smooth grey), to be chosen from the drop-down menu.

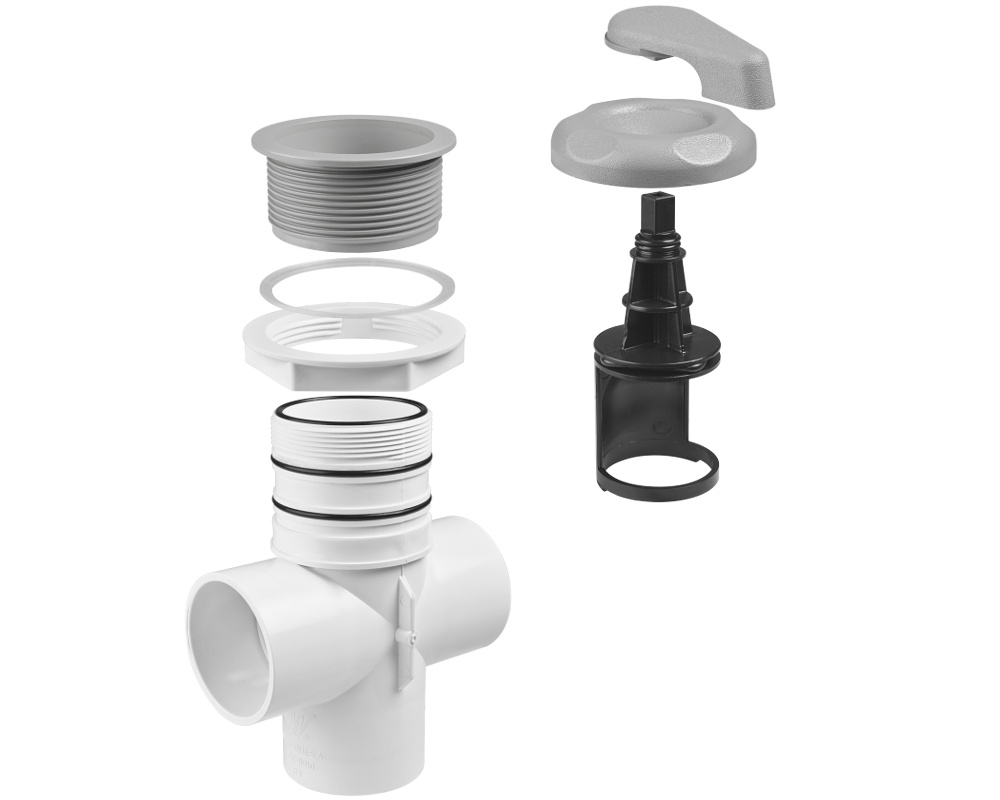

We also offer the handle, the o'ring, the flat gasket and the diverter valve gate of this valve as spare parts. The cover in textured grey is also available.

Dimensions
Drill diameter (for shell): 80 mm
Pipe connection diameter: 60 mm (for 2-inch pipe)
Outside diameter of the thread on the valve cap: 71 mm

Waterway part numbers
Textured grey: 600-3040, 600-3047
Smooth grey: 600-3067
Smooth black: 600-3061
You may also find part numbers 602-0960 and/or 602-0910 on the different components of this valve.
Sunrise Spas : R3045255, R3045256
