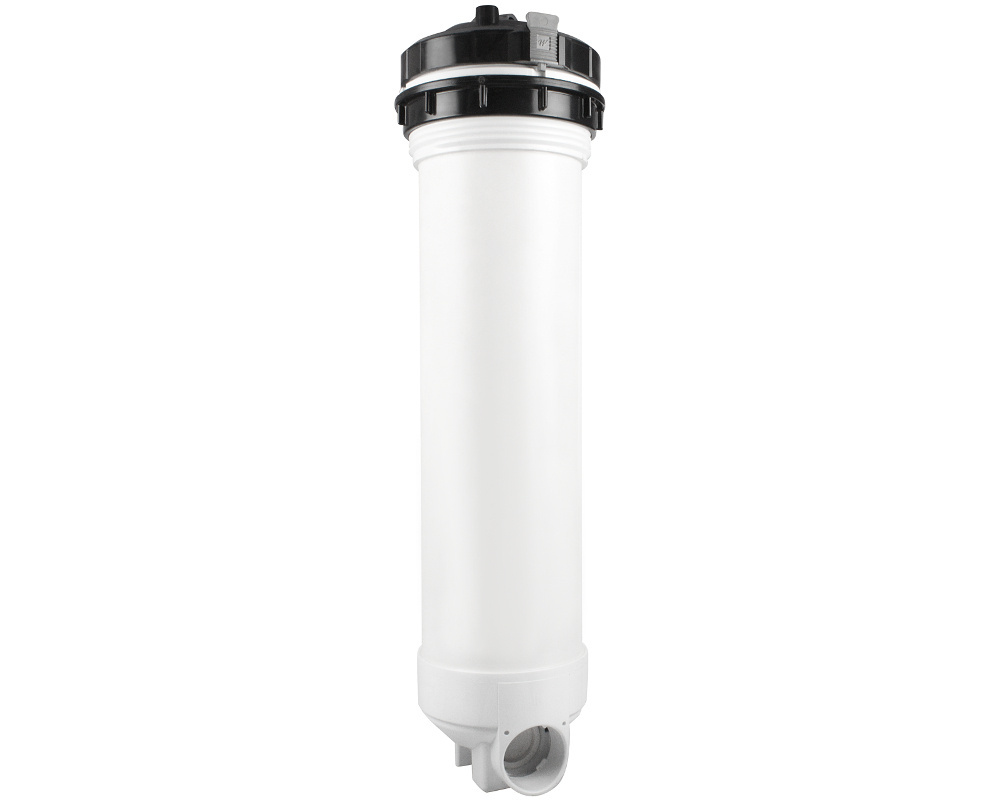

Waterway Top-Load Extended filter with Bypass + PRB75

The Waterway Top-Load filter allows you to install your filtration system in a convenient location, which need not necessarily be integrated in the spa shell. The filter is designed to be mounted in such a way that the cartridge can be removed from above (hence the name). It is delivered with a PRB75-type filter cartridge.

This is the "Extended" version of the Top Load skim-filter.

This Top Load filter comes with a bypass valve that opens when the water pressure is high, to prevent damage to the filter cartridge. The system makes this filter ideal for spas equipped with a two-speed pump. The water is fully filtered when the pump is running at low speed, but the valve opens to let some of the water pass without filtration when the pump is running at high speed, also preventing pressure from being lost in the massage jets.

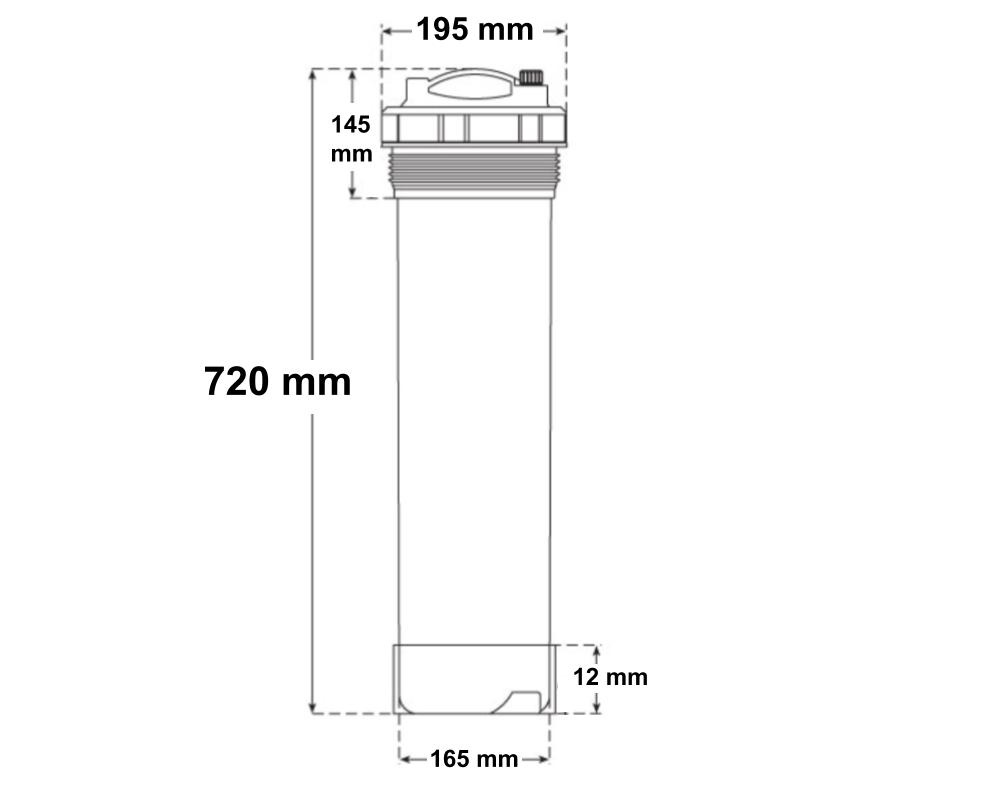

Dimensions
Hight: 720 mm
Wide: 195 mm

Connections
Inner diameter: 60 mm, for 2-inch pipes

Part numbers
Waterway : 502-7500
