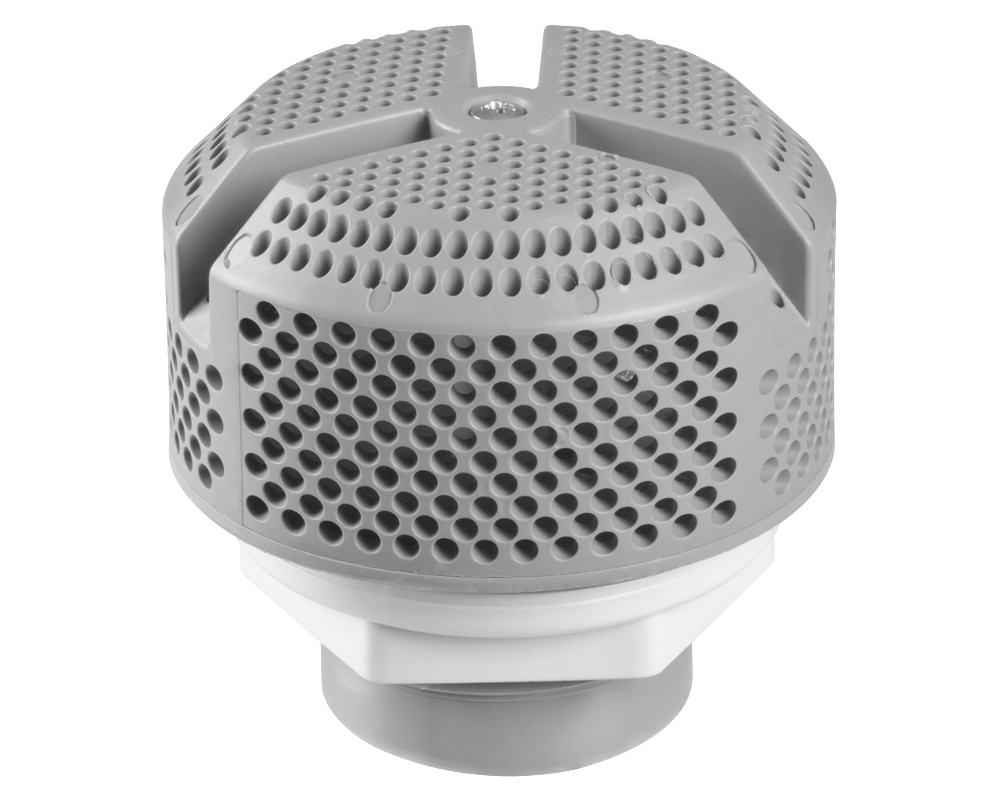

Waterway Ultra Hi-Flo suction 1.5"

This Waterway Ultra Hi-Flo suction for portable spas with a rating of 120 GPM (27m³/hour), has an anti-vortex grille and it should be connected to a 1.5-inch pipe. It has to be wall mounted while ensuring that the device is facing the right direction. We strongly advise against a mounting on the spa floor.

Complete with its nut and a seal.

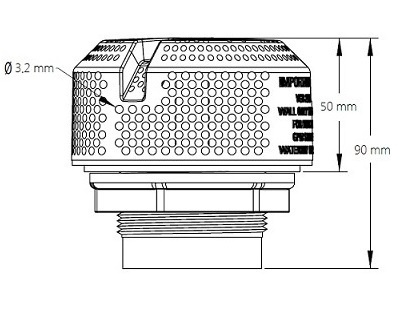

Dimensions
Outside diameter of the face: 95 mm
Inside diameter of the connection: 48 mm, for 1.5-inch pipe
Inside diameter of the hole in the spa shell : 59 mm

Maximum flow rate
27m³/hour

Waterway part numbers
Grey: 640-3497 V
Black: 640-3491 V
Sunrise Spas : LMI309350
