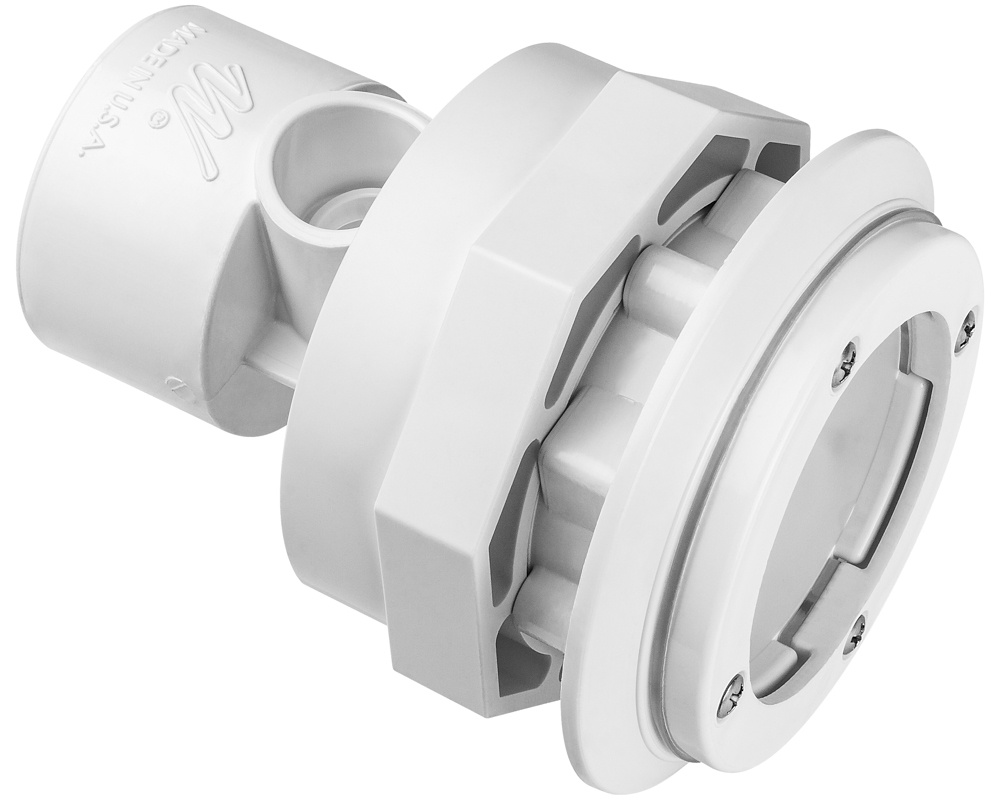

Waterway Vinyl liner Poly Storm socket

This body was created for installation on pools built with steel panels and liner cover. It already has included front flange kit for liner assembly, and works with all Poly Storm thread-in jets.

Dimensions
Length: 118 mm
Outside diameter of face: 98 mm
Inside diameter of face: 58 mm
outside diameter water inlet: 16 mm
Drilling diameter: 65 mm

Connections
Water: Inside diameter 48 mm, for 1.5-inch pipe
Air: Inside diameter 21 mm, for 1/2-inch hose

Part numbers
Waterway : 400-9090
