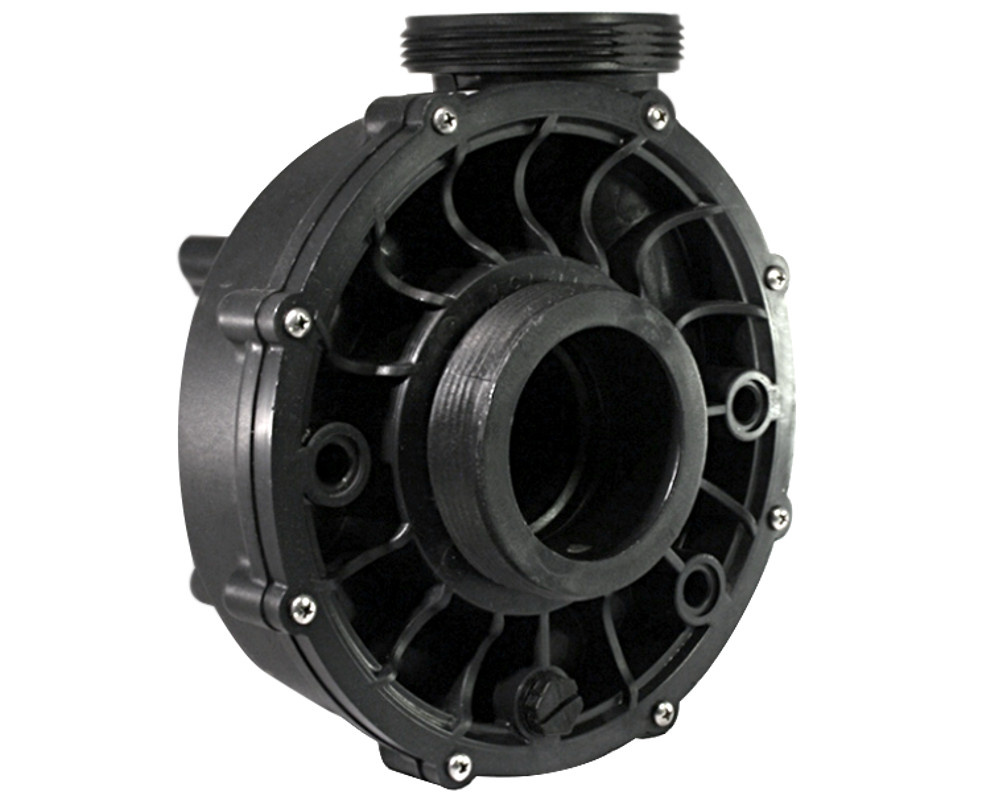

Waterway Viper wet end

The Waterway Viper pumps fitted with this body are used by several spa brands, particularly for upstream swimming in swimming spas.

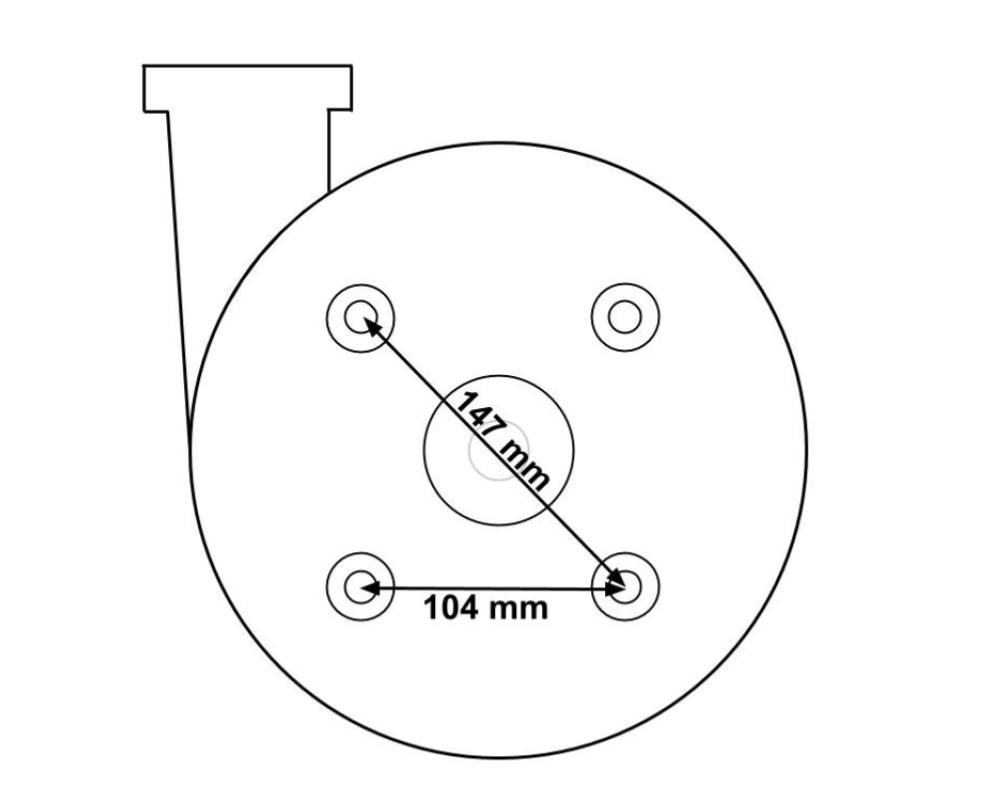

If you don't know which frame you have, you'll find information on how to measure your frame here.

This pump casing sometimes has a label that shows 5.0 HP, which refers to the type of turbine, and does not match the actual pump power. It is sold with its volute, turbine, mechanical seal, flange and gasket.

Do not forget if necessary a set of #10-32 screws to attach the pump body to the motor.

Connections
Both suction and discharge are equipped with 94 mm male threads, use 2.5 "pump unions to connect 2" hoses.

Dimensions
Width: 140 mm
Height: 225 mm
Distance between fixing points: 150 mm

Waterway References
Pump body: 310-0180
