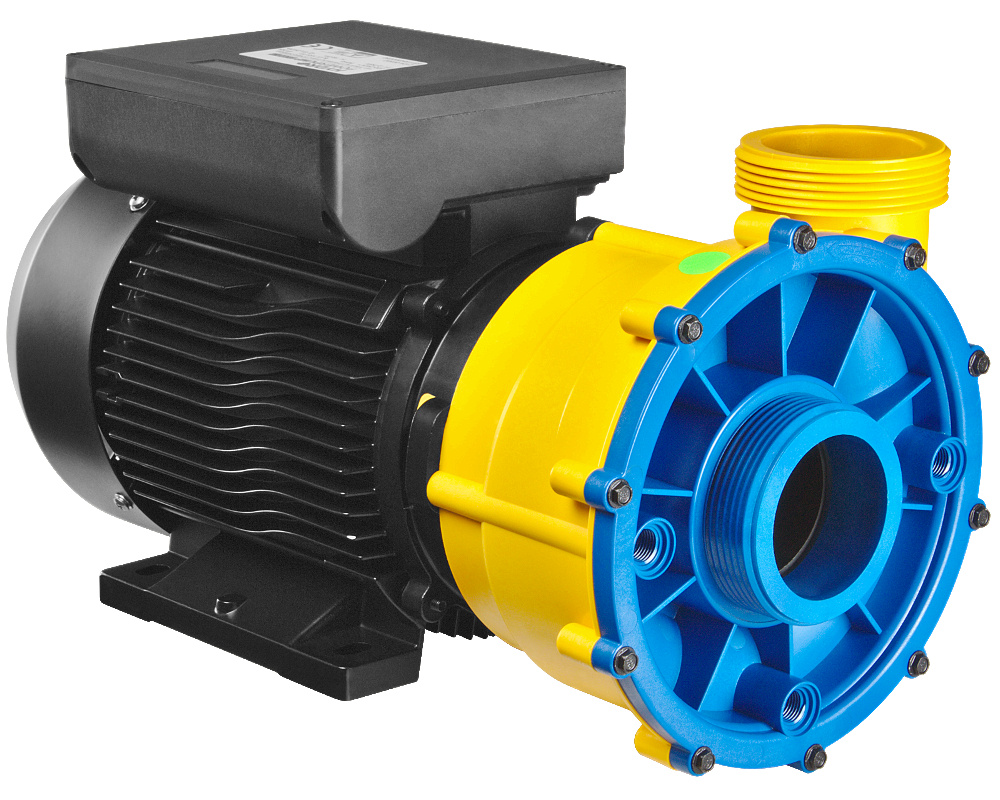

Whirlcare Hydro Power 2.5 HP single-speed pump

The German Whirlcare Hydro Power spa pumps, designed by the manufacturer Koller, are easily recognisable with their yellow and blue wet end. The pumps are integrated as standard in all whirlpools and swim spas from Whirlcare, but are also available as spare parts or retrofitting parts for all other brands.

This 2.5 HP single-speed pump is used for massage jets.

We also sell the Hydro Power single-speed massage pump with a 3 HP motor power, as well as the 2.5 HP two-speed version.

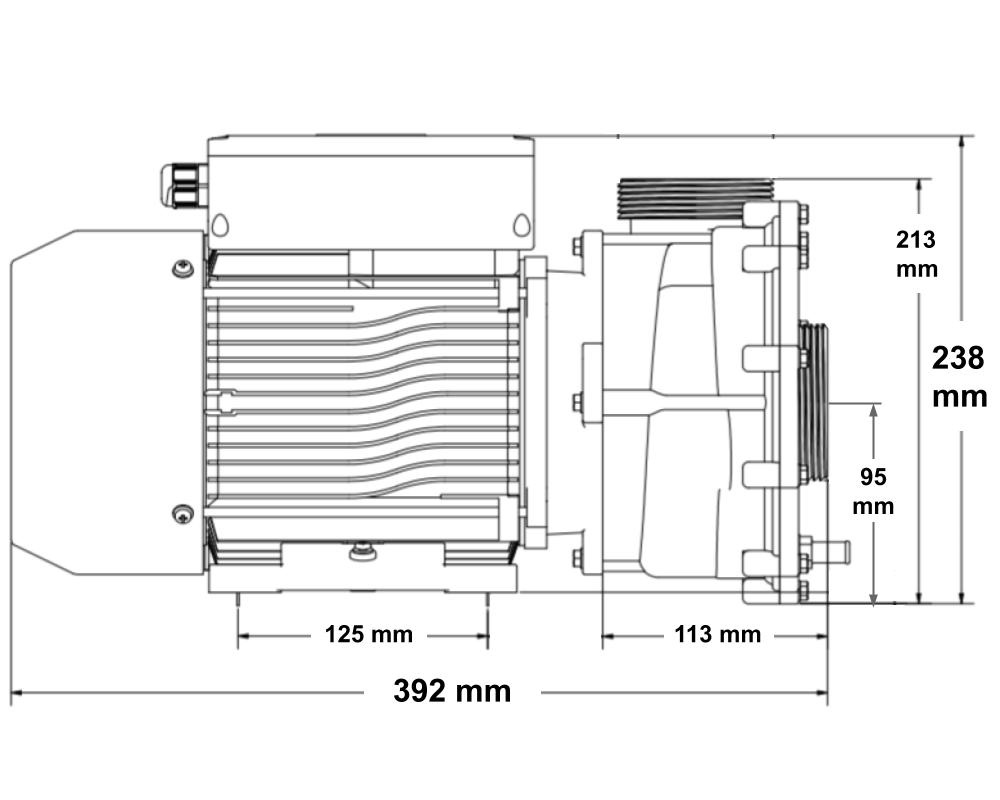

Dimensions
Length: 392 mm
Width: 197 mm
Height: 238 mm

Technical specifications
Power: 1.85 kW (2.5 HP)

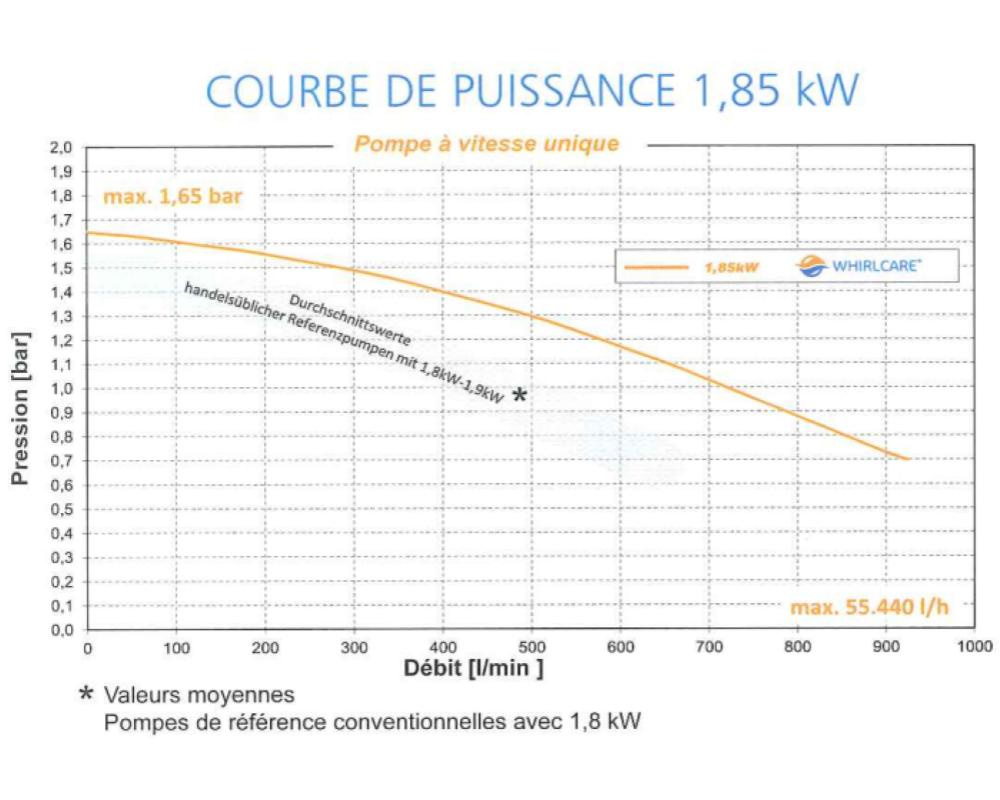

Maximum flow rate: 924 litres/minute or 55.4 m³/hour

Connections
Outflow and intake: male threaded with a 78 mm outside diameter (2-inch MBT).
This pump is normally connected to 2-inch pipes. The pump unions are not included in the price of this pump, but are available as an optional extra.

Cables and plugs
The Whirlcare Hydro Power 2.5 HP single-speed pump is delivered pre-cabled with an AMP plug (length 3 m). You can also choose to have it pre-cabled by our team with a mini J&J plug.

An in.link plug is also available, but we recommend that you keep your existing cable if it's in good condition. Your pump may indeed be defective for many reasons, but the power cable is rarely to blame.

Similar pump
The Koller 2,5 HP and LX Whirlpool LP250 have the same motor power and thread size as this Whirlcare pump, and roughly similar dimensions. If you want to replace your pump with another model, check beforehand the available space and the fixing distances as pipe connection adjustments may be necessary.

Warranty
2-year Tubs Parts warranty

Part numbers
Whirlcare: 6311RK000089, 6311 RK 000089
Replaces 6311RK000049
