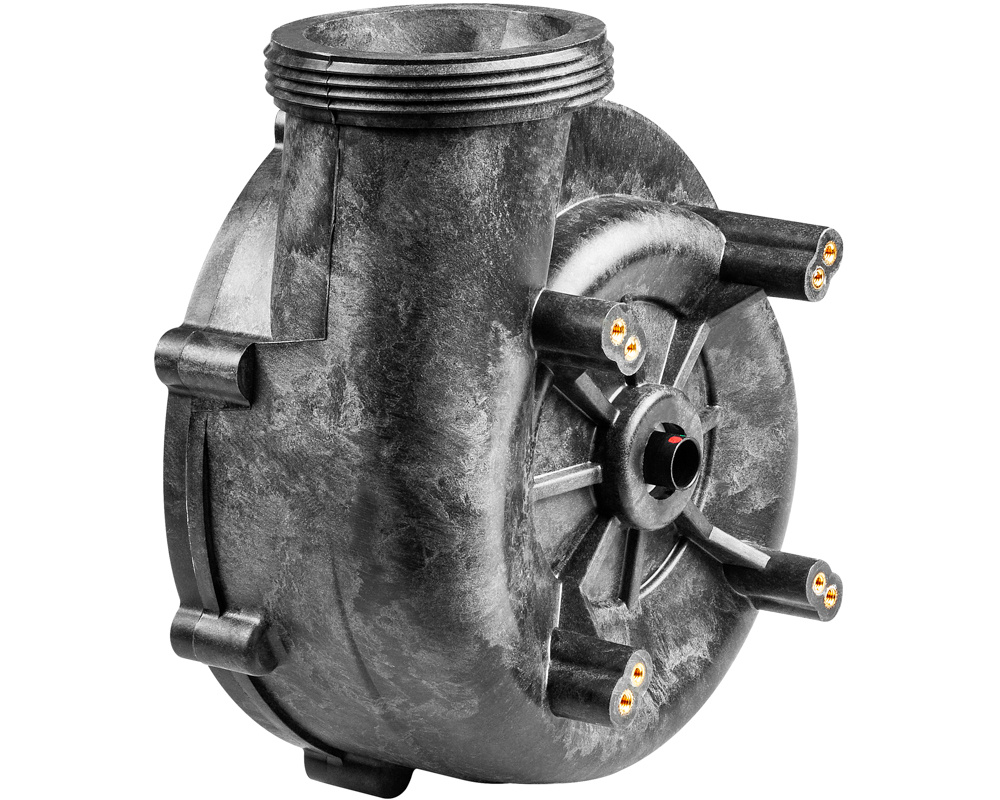

Aqua-Flo Flo-Master XP3 wet end

This complete wet end fits Aqua-Flo Flo-Master XP3 single-speed and two-speed pumps. It comes complete with volute, impeller, seal, face plate and o-ring ; the only other thing you will need is a motor.

It has two sets of threaded attachment points to fix the wet end to the motor: 48-Frame and 56-Frame.

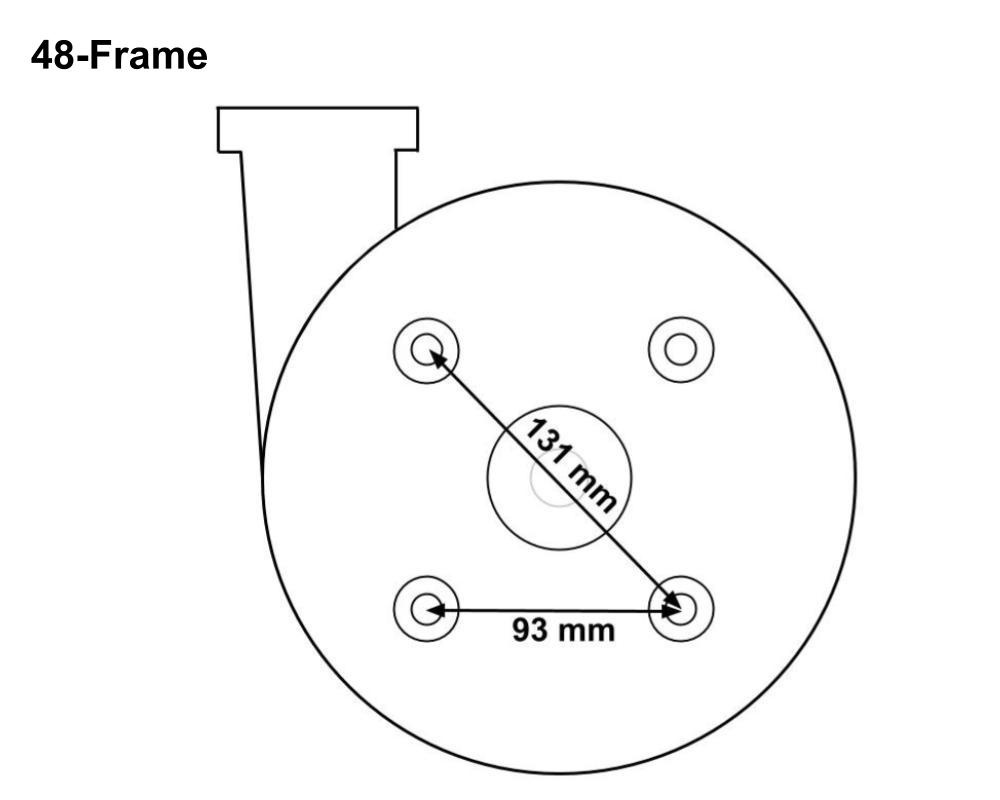

Thanks to the two sets of threaded attachment points to fix the wet end to the motor (see photo 2), this wet end is available in 48-Frame AND 56-Frame, the two most common standards for spa pumps.

Connections

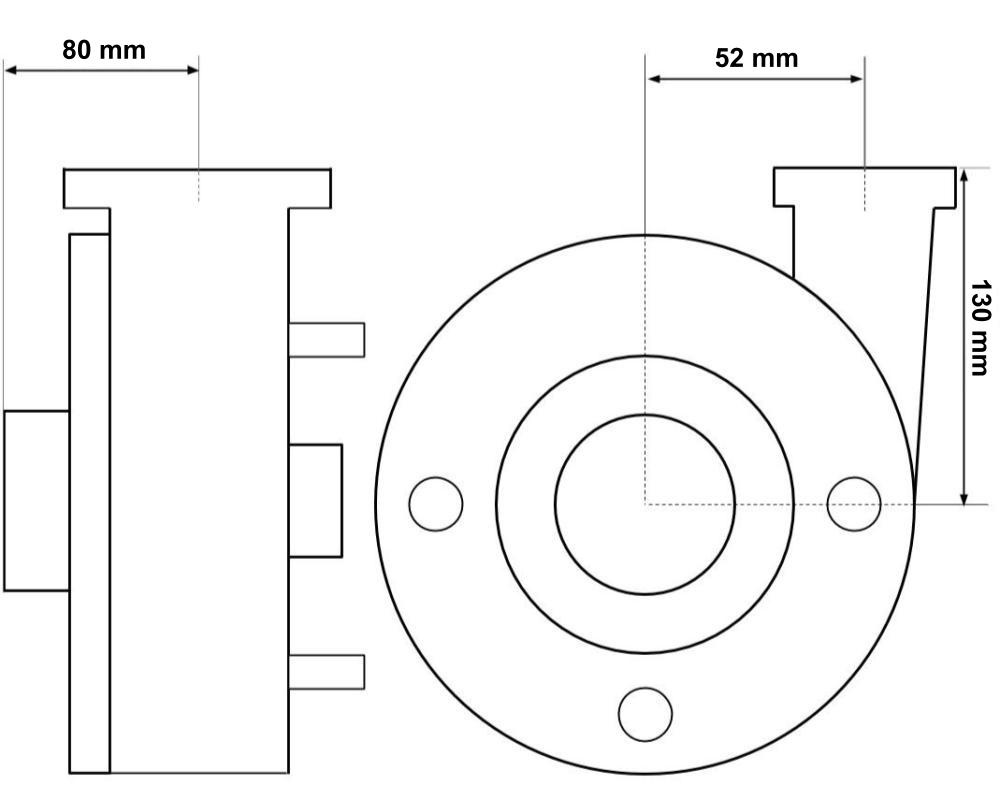

Both suction and discharge are equipped with 94 mm male threads, use 2.5 "pump unions to connect 2" pipes.

Part numbers
Aqua-Flo :
