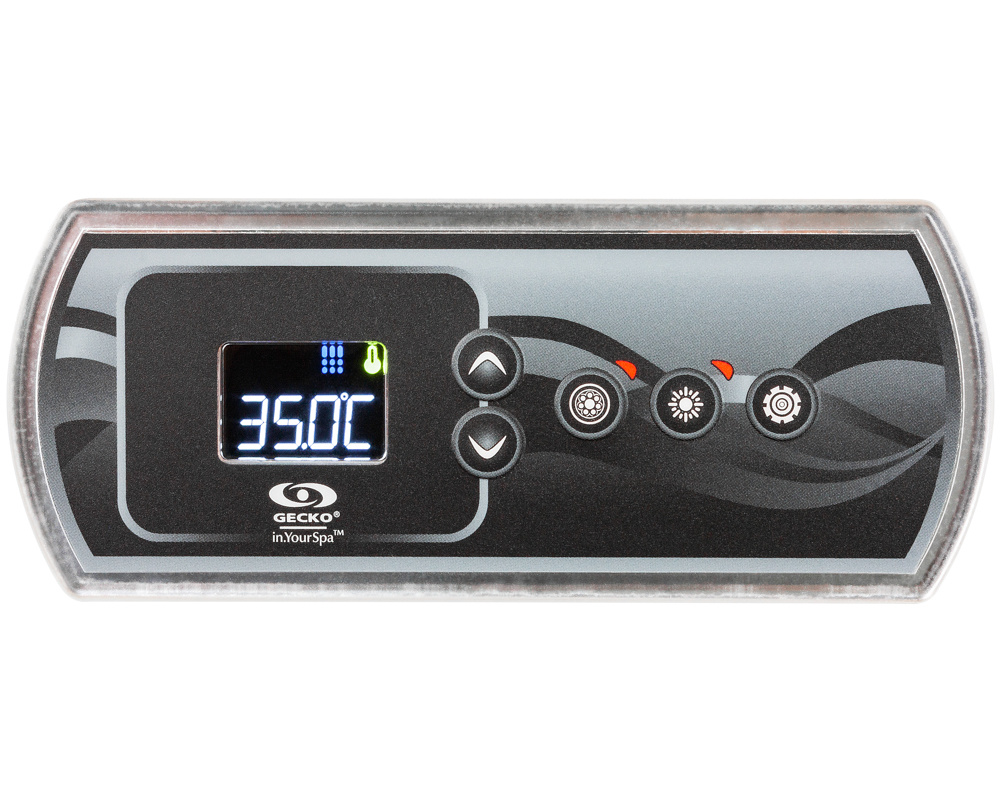

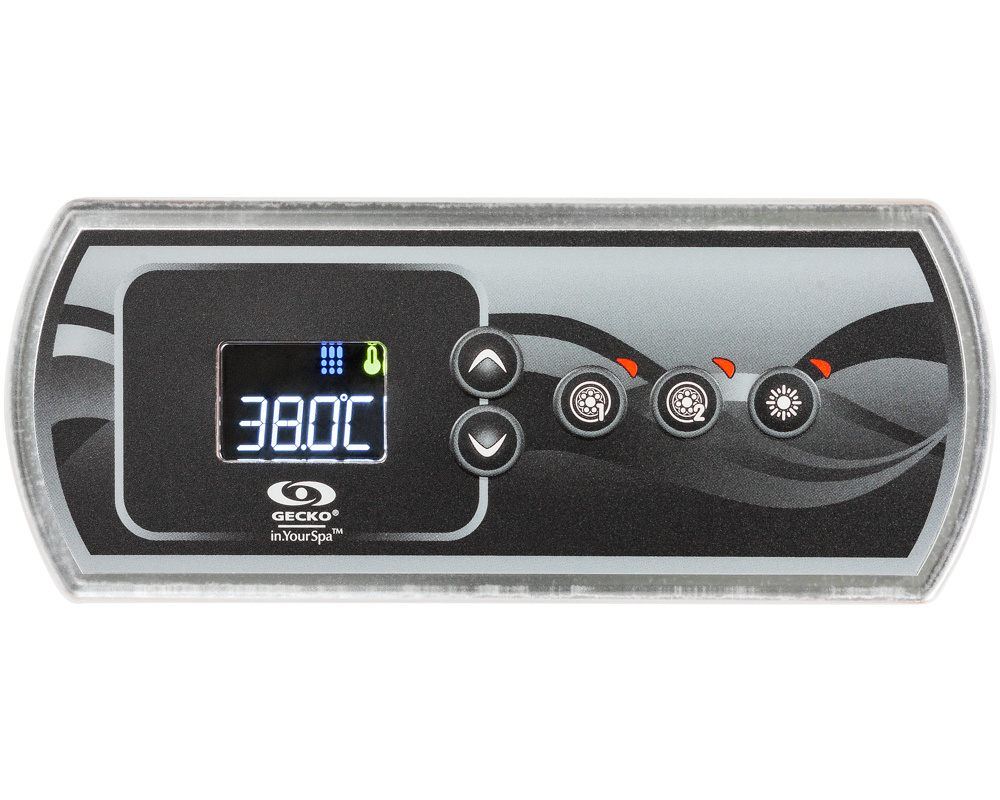

Gecko in.k336 keypad

The all-new Gecko in.k336 five-button keypad is one of the in.k330 series, and is compatible with all Gecko Y control systems (in.yj-3, in.ye-3, in.ye-3-V3, in.ye-5 and in.yt-7).

It has a backlit outer rim and an LCD screen with excellent contrasts and brightness. The in.k336 supports the in.lu.me LED lighting system and the in.temp heat pump.

This keypad is supplied with its two self-adhesive overlays depending on your one or two pump installation.

• One pump: Up/Down, Pump 1, Light, Program
• Two pumps: Up/Down, Pump 1, Pump 2, Light

Dimensions
Keypad: 183 x 76 mm
Total thickness: 60 mm
LCD screen (diagonal): 38 mm (1.5")
Cut out area : 158 x 56 mm
Cable: 3 m

Warranty
2-year Tubs Parts warranty

Gecko part numbers
Keypad : 0607-008112
1 pump overlay : 0607-008098; IN.K336-CL-1OP-GE1
2 pumps overlay : 0607-008099 IN.K336-CL-2OP-GE1
